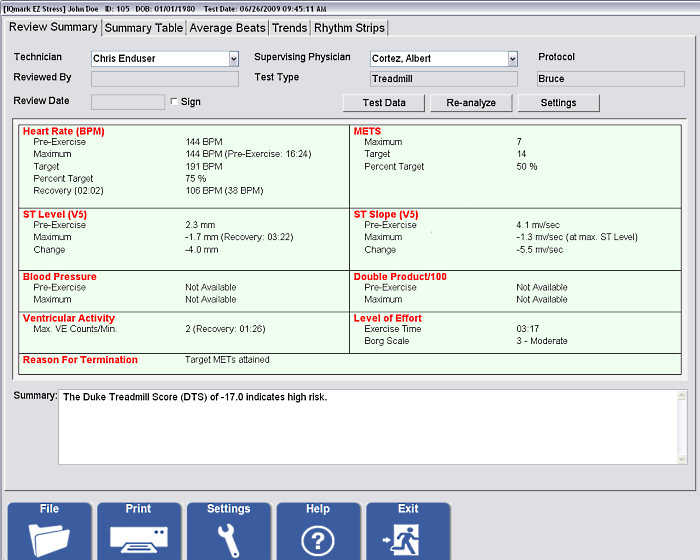

View Midmark Stress ECG Reports

NextGen® Enterprise EHR Help

Compare Midmark Stress ECG Reports

You can compare up to four Midmark ECGs from the same patient. For more information on how to use Midmark Stress ECG functionalities, refer to the appropriate Midmark operation manual. Open the Integrated Equipment Module Select the check boxes next to up to four Midmark Stress ECG reports in the IEM grid. Select Compare. The Stress Test Serial Comparison Report window opens. Select the following buttons to perform appropriate actions, as needed: Preview: Displays a print preview of the report. Print: Prints the report. Printer Setup: Enables you to change the printer settings. Help: Displays online help. Select Exit to close the report and return to the IEM. Parent topic: Midmark Stress ECGs

NextGen® Enterprise EHR Help

Create Midmark Stress ECG Reports

Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark Stress ECG. The Pre-Test Settings window opens. On the Pre-Test Settings window: If needed, select Settings to change system configurations and to manage user profiles. Select an Exercise Profile from the list and select Next. Note: If you had selected a ramp protocol, the Patient Activity Questionnaire window appears. Enter the patient’s level of physical activity and select Next. The Hookup window opens. Prepare the patient for the test by connecting the electrodes and verifying the ECG tracing quality. On the Hookup window: When you are satisfied with the ECG tracing quality, select Stage Up (F4) to allow the software to learn the ECG, which requires approximately 30 seconds. Once complete, the program au

NextGen® Enterprise EHR Help

Create Midmark Holter Reports

To acquire Midmark Holter data, your workstation must have a security key installed and the ability to read a CompactFlash or SD card. For more information on how to use Midmark Holter functionalities, refer to the appropriate Midmark operation manual. Prepare the patient for the test as needed. Insert the CompactFlash or SD card with the recorded Holter data into the card reader. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark Holter. The Holter Analysis window opens. On the Holter Analysis window: Enter the recording Start Time & Date. This time is in 24-hour format (for 1:00 pm., enter 13:00). Use the right arrow key to move from the hour digits to minute digits. To generate reports, check the Print Reports After Analysis box and then select Report Settings to choose which reports to print. Select the Flash Card option as the data source and select Browse. The Open File w

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap

NextGen® Enterprise EHR Help

Compare Midmark Spirometry Reports

You can compare up to ten Midmark Spirometry reports from the same patient. For more information on how to use Midmark functionalities, refer to the appropriate Midmark spirometry operation manual. Open the Integrated Equipment Module From the IEM grid, select the check boxes next to up to ten Midmark Spirometry reports. The Spirometry Trend window opens. Select Pre-Bronchodilator Tests or Post-Bronchodilator Tests and select OK. The Spirometry Trends window opens. Select the following buttons to perform appropriate actions, as needed: Save To File: Saves the report as a Microsoft Excel file. Print: Prints the report. Printer Setup: Enables you to change the printer settings. Select Report: Returns to the IEM Equipment Reports window. Select Items To Trend: Enables you to select trend settings for display or printing. View F/V Loops: Displays the Flow/Volume loops using the default screen format or the last screen format used. View Patient Info: Displays the Patient Information window.

NextGen® Enterprise EHR Help

View Hillrom™ HeartCentrix® Resting ECG Reports

After ordering a Cardiac Science Resting ECG report, you can view it. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the IEM grid, select a Cardiac Science Resting ECG Report record with a Test Status of Confirmed, UnconfirmedOnly, or Reconfirmed. Select View Report. The HeartCentrix® Resting ECG report opens. Note: If the system finds a suitable match from information supplied in the Patient Information window, it populates the Race field. Otherwise, the field defaults to "Unknown." Select the HeartCentrix Main toolbar items as needed (functions are dependent on user permissions and view mode). After making any changes, select Confirm to save changes and return to the IEM. For more information on how to use HeartCentrix® functionalities, refer to the appropriate HeartCentrix® user manual. Parent topic: Hillrom HeartCentrix Devices
