Compare Midmark Spirometry Reports

You can compare up to ten Midmark Spirometry reports from the same patient.

For more information on how to use Midmark functionalities, refer to the appropriate Midmark spirometry operation manual.

  1. Open the Integrated Equipment Module
  2. From the IEM grid, select the check boxes next to up to ten Midmark Spirometry reports.

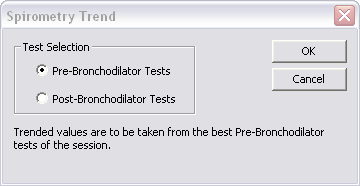

    The Spirometry Trend window opens.

  3. Select Pre-Bronchodilator Tests or Post-Bronchodilator Tests and select OK.

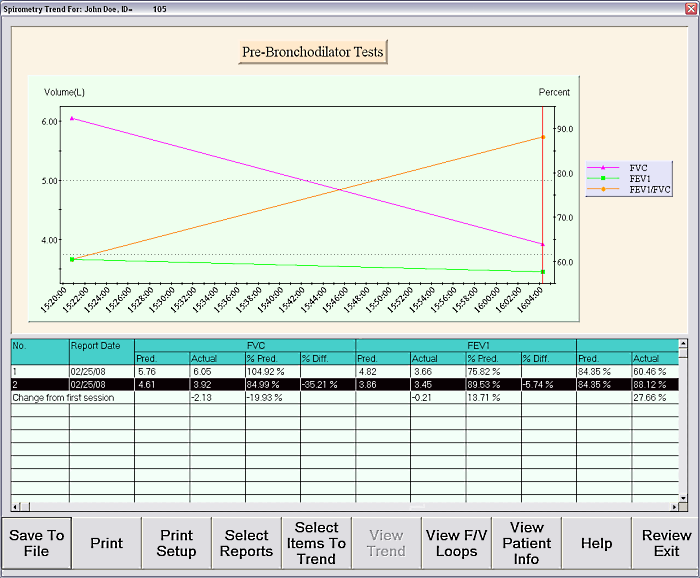

    The Spirometry Trends window opens.

  4. Select the following buttons to perform appropriate actions, as needed:
    • Save To File: Saves the report as a Microsoft Excel file.
    • Print: Prints the report.
    • Printer Setup: Enables you to change the printer settings.
    • Select Report: Returns to the IEM Equipment Reports window.
    • Select Items To Trend: Enables you to select trend settings for display or printing.
    • View F/V Loops: Displays the Flow/Volume loops using the default screen format or the last screen format used.
    • View Patient Info: Displays the Patient Information window.
    • Help: Displays online help.
  5. Select Review Exit to close the report and return to the IEM.
  6. If prompted, select Yes to save any changes.
