Set up Grid Row Select Trigger
Follow the applicable steps in
General Trigger Setup
.
Select the
Grid Row Select
action.

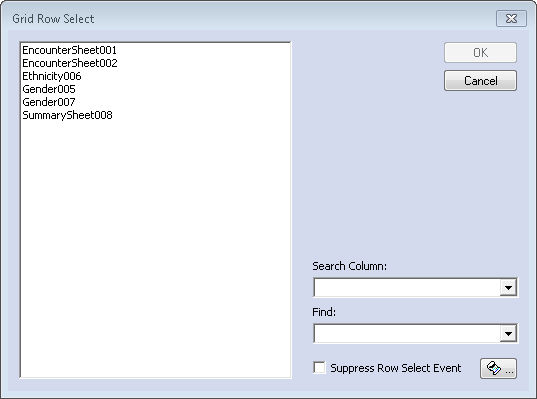

The
Grid Row Select
window opens.
Select the required data sheet list.
Note:
Data Flow Sheet and Lab Summary Sheet data grid types are not supported.
In
Search Column
, select the data sheet fields from the list.
In
Find
, select the edit fields that is on the template from the list.
To clear the selected row, select the deselect option from the list.
To suppress the selected row event, select the
Suppress Row Select Event
check box.
Select
Script It
.
The
Script Clipboard
window opens with the script of the label.
To copy the script to clipboard, you can select
Copy to Clipboard
.
To return to the
Trigger Info
window, select
OK
.
If necessary, set up a specific condition for the Grid Row Select action to be triggered.
Select
OK
and save your template.
Recommendations
Explore
NextGen® Enterprise EHR Template Editor Help 8
Change Field Color Trigger
The Change Field Color action enables you to change: Text color for label, active text, data entry (edit), and check box fields Background color for a data entry field Change the color of multiple fields at a time on a template Assign the color from a template field or variable at run time instead of during trigger setup. Note: Set colors for selected and unselected active text in the Values tab on the Insert or Edit Active Text window. Follow the applicable steps in General Trigger Setup. Select the Change Field Color action. The Change Field Color window lists all of the template fields that can change field color. From the Available Template Fields pane, select each field for which you want to change color, and select Add. The selected field displays in the Fields to Change pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Change pane and selecting the Re
NextGen® Enterprise EHR Template Editor Help 8
Enable Control Trigger
The Enable Control action enables the selected field(s) on a template at run time. You cannot enable the following types of fields: web browser, patient image, graph, lab order, sub template, and GET component. Note: If you enable a collapsible panel, all fields on it are also enabled. You can disable specific fields on the panel separately. All other fields on the panel remain enabled. Follow the steps in General Trigger Setup. Select the Enable Control action. The Enable Template Field window opens. From the Available Template Fields pane, select each field you want to enable, and then select Add. The selected field appears in the Fields to Enable pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Enable pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected
NextGen® Enterprise EHR Template Editor Help 8
Set up Hide Item Trigger
You can hide one or more selected fields on the template at run time using hide item trigger. Follow the steps in General Trigger Setup. Select the Hide Item action. The Hide Template Field window opens. From Available Template Fields, select each field you want to hide, and then select Add. The selected fields appear in the Fields to Hide pane. You can select the multiple fields by selecting the Ctrl button. You can remove the selected fields by selecting the fields from the Fields to Hide pane and selecting the Remove button. From Filter, select the required filters. The Available Template Fields pane now displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to C
NextGen® Enterprise EHR Template Editor Help 8
Set up Refresh Data Grid Trigger
The Refresh Data Grid action refreshes the display of information in the preselected data sheet/grid field at run time. Follow the applicable steps in General Trigger Setup. Select the Refresh Data Grid action. The Refresh Data Grid window opens. Select the specific data sheet/grid you want to be refreshed at run time. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, select Copy to Clipboard. To save the information and close the window, select OK. If necessary, set up a specific condition for the action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger
NextGen® Enterprise EHR Template Editor Help 8
Set up Template Pop-Up Trigger
The Template Pop-Up action launches a predefined Popup template. You can place this trigger on fields on Sidebar templates as well as other template types. Use this trigger together with a Get Template Notification Data trigger to launch Popup templates for the Graphical Exam Tool (GET) component. Follow the applicable steps in General Trigger Setup. Select the Template Pop-Up action. The Template Pop-Up window opens. Select the template or the field or variable you want to use to launch the template pop-up. Select Fields, Templates, or Variables, and then select the applicable item from the list that displays. Select the Ignore Alias check box to use the original NextGen® Enterprise EHR. Note: This functionality is available only if the NextGen® Enterprise EHR have been locked down. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, select Copy to Clipboard. To close the window, select OK. If necessary, set up a specific
NextGen® Enterprise EHR Template Editor Help 8
Change a Trigger
You can edit the field, event, action, or condition for an existing trigger. The edit function also provides a quick way for you to add a trigger based on an existing, simple trigger. This capability cannot be used for certain triggers that are tied to cross-reference tables (for example, the Assign Field Value trigger tied to the trig_mf_xref table). To open the Triggers window, do one of the following: Right-click anywhere on the template, and then select Triggers from the shortcut menu. On the Main toolbar, select Triggers. From the View menu, select Triggers. Select a specific field within the template. Select Triggers, select View > Triggers, or right-click the selected field, and then select Triggers from the shortcut menu. Note: The Copy and Paste buttons appear on the Triggers window only when you select a specific field on the template. In the Triggers window, select the trigger you want to change. Information entered for the selected trigger appear in the Trigger, Condition,
