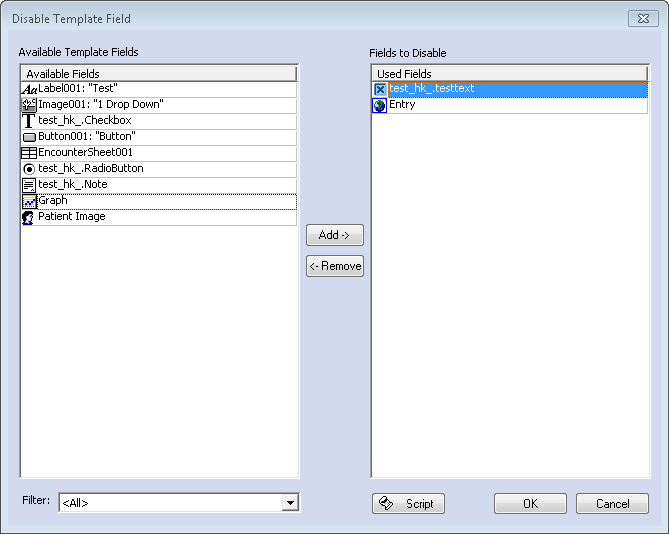

Disable Control Trigger

NextGen® Enterprise EHR Template Editor Help 8

Enable Control Trigger

The Enable Control action enables the selected field(s) on a template at run time. You cannot enable the following types of fields: web browser, patient image, graph, lab order, sub template, and GET component. Note: If you enable a collapsible panel, all fields on it are also enabled. You can disable specific fields on the panel separately. All other fields on the panel remain enabled. Follow the steps in General Trigger Setup. Select the Enable Control action. The Enable Template Field window opens. From the Available Template Fields pane, select each field you want to enable, and then select Add. The selected field appears in the Fields to Enable pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Enable pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected

NextGen® Enterprise EHR Template Editor Help 8

Change Field Style Trigger

The Change Field Style action enables you to change the style of the selected data entry (edit), check box, radio button, and note fields. Depending on the field type, you can apply the Normal, Read-Only, Required, or Required Read style. You can select one or multiple fields at a time using a single trigger. For example, you can set up triggers to change the field style to Read-Only for all fields containing lab results after these fields are populated. Follow the applicable steps in General Trigger Setup. Select the Change Field Style action. The Change Field Style window lists all of the template fields that can change field style. In the Available Template Fields pane, select each field for which you want to change style, and select Add. The selected field displays in the Fields to Change pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. You can remove the selected fields by selecting the fields from Fields to Change pane and select

NextGen® Enterprise EHR Template Editor Help 8

Change Field Color Trigger

The Change Field Color action enables you to change: Text color for label, active text, data entry (edit), and check box fields Background color for a data entry field Change the color of multiple fields at a time on a template Assign the color from a template field or variable at run time instead of during trigger setup. Note: Set colors for selected and unselected active text in the Values tab on the Insert or Edit Active Text window. Follow the applicable steps in General Trigger Setup. Select the Change Field Color action. The Change Field Color window lists all of the template fields that can change field color. From the Available Template Fields pane, select each field for which you want to change color, and select Add. The selected field displays in the Fields to Change pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Change pane and selecting the Re

NextGen® Enterprise EHR Template Editor Help 8

Set up Show Item Trigger

The Show Item action displays the selected, previously hidden field(s) on the template at run time. Follow the steps in General Trigger Setup. Select the Show Item action. The Show Template Field window opens. From the Available Template Fields pane, select each field you want to show, and then select Add. The selected fields appear in the Fields to Show pane. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Show pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected, if applicable to the action. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the labe

NextGen® Enterprise EHR Template Editor Help 8

Set up Hide Item Trigger

You can hide one or more selected fields on the template at run time using hide item trigger. Follow the steps in General Trigger Setup. Select the Hide Item action. The Hide Template Field window opens. From Available Template Fields, select each field you want to hide, and then select Add. The selected fields appear in the Fields to Hide pane. You can select the multiple fields by selecting the Ctrl button. You can remove the selected fields by selecting the fields from the Fields to Hide pane and selecting the Remove button. From Filter, select the required filters. The Available Template Fields pane now displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to C

NextGen® Enterprise EHR Template Editor Help 8

Set up Grid Row Select Trigger

Follow the applicable steps in General Trigger Setup. Select the Grid Row Select action. The Grid Row Select window opens. Select the required data sheet list. Note: Data Flow Sheet and Lab Summary Sheet data grid types are not supported. In Search Column, select the data sheet fields from the list. In Find, select the edit fields that is on the template from the list. To clear the selected row, select the deselect option from the list. To suppress the selected row event, select the Suppress Row Select Event check box. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to Clipboard. To return to the Trigger Info window, select OK. If necessary, set up a specific condition for the Grid Row Select action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger
