Insert an Active Image Field

NextGen® Enterprise EHR Template Editor Help 8

Insert a Patient Image Field

Drag the Patient Image icon from the Fields toolbar to the template design area where you want to place it. The Insert Patient Image window opens. In the Name text box, enter the name you want to assign. To reposition the field on the template, enter the appropriate numeric values to replace the current vertical and horizontal coordinates displayed in the Position boxes. To resize the field, enter the appropriate numeric values to replace the current dimensions displayed in the Size boxes. In the Style section, select the Border, Client Edge, or Modal Frame check box. To hide the patient image field when the template is opened, select the Hidden check box. Select OK and save your template. At run time, the patient image scanned through the Patient Information window is automatically embedded into the field. Parent topic: Template Fields

NextGen® Enterprise EHR Template Editor Help 8

Insert a Label Field

Drag the Label icon from the Fields toolbar to the template design area where you want to place it. The Insert a Label window opens. Note: The label name is automatically assigned in the Name box. You can enter a name of your choice. If necessary, select a mask from the Mask list. Enter the text to appear on the label in the Caption window. Note: Instead of entering the caption here, you can use in-place caption editing to enter the caption directly in the field after you have created it. To reposition and resize the field on the template, do the following: Enter the appropriate numeric values to replace the current vertical and horizontal coordinates displayed in the Position boxes. Enter the appropriate numeric values to replace the current dimensions displayed in the Size boxes. To do the following, select the check box: To apply a style to the label, select the applicable Style check box. The Preview window shows you what each label style looks like. You can apply one or more style

NextGen® Enterprise EHR Template Editor Help 8

Insert Check Box

When you are logged in as KBM admin in Template Editor, you can modify the properties of NextGen® Adaptive Content Engine templates. In Template Editor, drag CheckBox from the Fields toolbar to the template design area where you want to place it. The Insert Checkbox window opens. In Table, the template name appears if the table is saved. Do one of the following: To create fields that are native to the table associated with this template, leave Table blank. To share fields with another template, select a template from Table. To create a local template field, select local from Table. In Field, do one of the following. To create a new field, enter the name in Field. You can use up to 30 alphanumeric characters. Do not begin the name with a number or underscore or include any spaces. To share a field from another template, select that template from Table and then from Field, select the field you want to use. In Type, do one of the following: Select Text for the alphabetic characters. Selec

NextGen® Enterprise EHR Template Editor Help 8

Insert an Order Control Field

You can use an order control field on a template in two ways: Insert the field on a Medical Records template to enable a user to view or enter lab, radiology, or immunizations order or result information in NextGen® Enterprise EHR at run time. Insert the field on a Practice or Practice Popup template to enable a user to manage all patient orders across a practice and update practice order filters in NextGen® Enterprise EHR at run time. Note: You can also use the Patient Lab Order trigger to order lab or radiology tests. You can use both the Patient Lab Order trigger and an order control field on a template. When the trigger is executed, the information displayed from the order control field can be refreshed to include the new lab or radiology order. Drag the Order Control icon from the Fields toolbar to the template design area where you want to place it. The Insert Order Control window opens. Note: You may need to enlarge your template to make room for the field. In the Name text box,

NextGen® Enterprise EHR Template Editor Help 8

Template Field Types

The following table explains the types of template fields listed in the order that they appear on the Fields toolbar. Field Description Label Labels enable you to add information to a template. You can set up a label as a header for the template or simply to enter text viewable template users. Data Entry (Edit) Data entry fields enable you to enter information into NextGen® Enterprise EHR through templates. These fields can be used to enter time, date, and numeric values, as well as user-defined text. Check Box Check boxes enable you to enter data by selecting or clearing a predefined response. Push Button You can use buttons to trigger several different actions. Launching another template or module within NextGen® Enterprise EHR is the most common purpose of buttons. Data Sheet Data sheets display data from NextGen® Enterprise EHR tables in tabular or grid format. The following types of data sheets are available: Appointments, Case Sheet; Data Flow Sheet, Data Grid - CM (Case Manageme

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Insert an Active Image Field

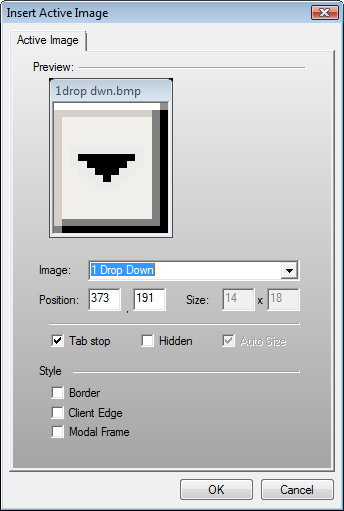

To enable an active image, set up triggers for each of the active regions within an active image. Drag the Active Image icon from the Fields toolbar to the template design area where you want to place it. The Insert Active Image window opens. From the Image list, select the image you want. A preview of the selected image appears. Note: All active images must be created using the Image Region Editor Utility. For more information, go to NextGen Healthcare Success Community and download the latest Image Region Editor Utility Guide for NextGen® Enterprise EHR. To reposition the field on the template, enter the appropriate numeric values to replace the current vertical and horizontal coordinates displayed in the Position boxes. Note: The Auto Size check box is selected permanently by default. To hide the active image when the template is opened, select the Hidden check box. Select the check box for the border Style. Select OK and save your template. Parent topic: Template Fields See also Se
