Drag the Patient Image icon from the Fields toolbar to the template design area where you want to place it.

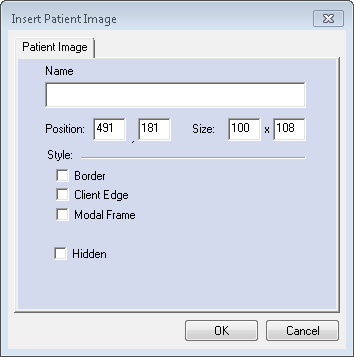

The Insert Patient Image window opens.
In the Name text box, enter the name you want to assign.
To reposition the field on the template, enter the appropriate numeric values to replace the current vertical and horizontal coordinates displayed in the Position boxes.
To resize the field, enter the appropriate numeric values to replace the current dimensions displayed in the Size boxes.
In the Style section, select the Border, Client Edge, or Modal Frame check box.
To hide the patient image field when the template is opened, select the Hidden check box.
Select OK and save your template.
At run time, the patient image scanned through the Patient Information window is automatically embedded into the field.
