Create Welch Allyn® Spirometry Reports

NextGen® Enterprise EHR Help

View Welch Allyn® Reports

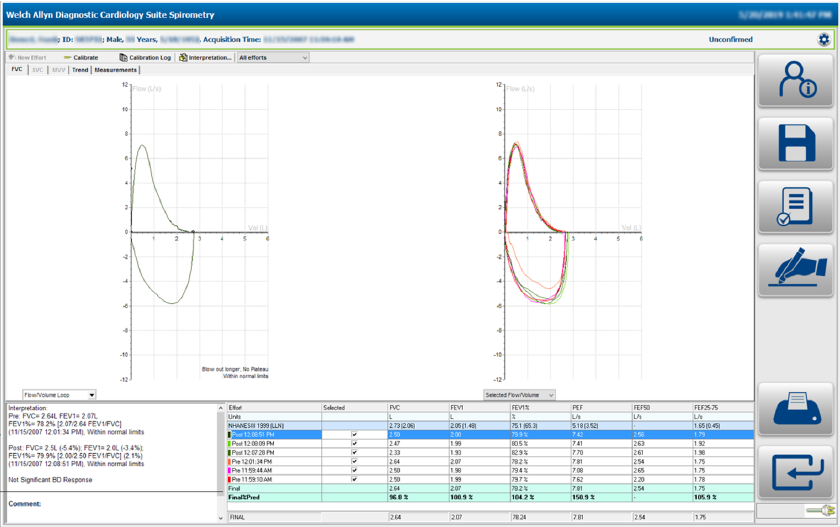

Access the Integrated Equipment Module. Select a Welch Allyn ECG, Welch Allyn Exercise ECG, or Welch Allyn Spirometry report from the IEM grid. Note: Welch Allyn® Exercise ECG reports are supported only by CardioPerfect® and not by the Diagnostic Cardiology Suite™ . Select View Report. The Diagnostic Cardiology Suite™ or CardioPerfect® Workstation application starts and displays the report. Report Displayed in Diagnostic Cardiology Suite Use the tabs to view additional information as needed. Close the Diagnostic Cardiology Suite™ or CardioPerfect® Workstation application to return to the IEM. Parent topic: Hillrom Welch Allyn Devices

NextGen® Enterprise EHR Help

Create Welch Allyn® Resting ECG Reports

Before you begin Before you start recording, ensure that the device is connected to the PC. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. From the Acquire Report list, select Welch Allyn ECG.The Diagnostic Cardiology Suite™ or CardioPerfect® Workstation application starts and opens the ECG capture screen. Capture an ECG as described in the appropriate Welch Allyn® Diagnostic Cardiology Suite™ or CardioPerfect® resting ECG user manual. Close the Diagnostic Cardiology Suite™ or CardioPerfect® application to return to the IEM.A new Welch Allyn Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. If you confirmed the interpretation, the Test Status column in the IEM grid displays Confirmed; otherwise, it displays UNCONFIRMED. Parent topic: Hillrom Welch Allyn Devices

NextGen® Enterprise EHR Help

Create GE Spirometry Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft functionality, refer to the GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Spirometry. The GE CardioSoft application starts and displays the Test Information window. Before the test starts: Configure and select the appropriate settings as needed. Explain the test procedure to the patient. On the Test Information window: For each tab, enter or select all relevant information and select OK. If you are performing a Flow-Volume measurement: Select the Start Test button. If prompted, select OK to confirm that the patient is not yet breathing through the sensor. Have the patient exhale and inhale as directed. Select the Stop Test button. Repeat the test as needed. Select Best

NextGen® Enterprise EHR Help

Import CardioPerfect® Tests

If a test report exists in CardioPerfect® but not in IEM, then you can import the report into IEM as follows: Open the Integrated Equipment Module From the Acquire Report list, select the pertinent Welch Allyn record.The CardioPerfect Workstation application starts. Cancel the recording. Select the test you want to import from the lower left pane, and if needed, confirm it.If the test does not exist in NextGen® Enterprise EHR, it will be imported into the selected encounter and listed in the IEM grid with the original date of the report. For more information on how to use the CardioPerfect® application, refer to the appropriate Hillrom™ Welch Allyn® CardioPerfect® ECG or Spirometry manual. Parent topic: Import Tests from Welch Allyn

NextGen® Enterprise EHR Help

Order Hillrom™ HeartCentrix® Reports

Typically, you order a test in NextGen® Enterprise EHR, perform the test at the acquisition device, and then go back to NextGen® Enterprise EHR to view the results. After a test is requested, the HeartCentrix® application automatically matches a test to a specific order. If you order a test that was previously performed, you need to match an existing test to the order you are creating. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select a Cardiac Science device (ECG, Exercise ECG, or Holter) . The HeartCentrix Auto Search window opens. The system updates the screen every five seconds for tests coming in from acquisition devices. If tests are listed, highlight the pertinent test and select Select to match the order to the test. If no matches appear, select Tests Received to display the Manual Search tab and list all the tests received since the order was received. If tests are listed, hi

NextGen® Enterprise EHR Help

View Hillrom™ HeartCentrix® Exercise ECG Reports

After ordering a Cardiac Science Exercise ECG report, you can view it. Open the Integrated Equipment Module From the IEM grid, select a Cardiac Science Exercise ECG Report record with a Test Status of Confirmed, UnconfirmedOnly, or Reconfirmed. Select View Report. The HeartCentrix® Exercise ECG report opens. Note: If the patient has multiple race entries, then for Cardiac Science multiple race entries, the race is interpreted as Other. If the system finds a suitable match from information supplied in the Patient Information window, it populates the Race field. Otherwise, the field defaults to "Unknown." Select the HeartCentrix Main toolbar items as needed (functions are dependent on user permissions and view mode). After making any changes, select Confirm to save changes and return to the IEM. For more information on how to use HeartCentrix® functionalities, refer to the appropriate HeartCentrix® user manual. Parent topic: Hillrom HeartCentrix Devices
