Attach a File System or Patient Chart Image

NextGen® Enterprise EHR Help

Attach a Photo

Attaching a File System or Patient Chart Image is another way to attach an image stored on your file system to a finding. Right-click the finding row in the Findings Grid, and select Attach Image. The Select Image window opens. Locate the image and select Open to display it in the PHOTO pane at the lower left corner of the Graphical Exam Tool (GET) component window. The image is attached to the finding in the patient's chart when you save the annotated image. It is labeled with the Finding Name - Region Description. Note: If you delete an annotation in either the Findings Grid or on the active image, the photo attached to that annotation is no longer displayed. Parent topic: Attach Images to a Finding Related concepts Findings Grid Related tasks Attach a File System or Patient Chart Image

NextGen® Enterprise EHR Help

Import a Web Camera or Video Device Image

You can capture and attach an image from a web camera or video device to a finding and save it to the patient's chart. From the Findings Grid, select the finding row that you want to capture an image for. Select the Acquire Image button at the top right of the Graphical Exam Tool (GET) component window. The Camera Capture window opens. The system attempts to find connected cameras. If a connection is made, the current real-time image appears. If no camera is present, a blank window appears. If you have multiple cameras, select the applicable one from the Device list. If a device settings window opens, review the settings, and adjust them, as needed. To capture the image, select Camera. The device streams video to the window. To freeze the video stream, select Snapshot. Select OK to capture the currently displayed image. A small camera icon appears under the Camera column for the selected finding row. The image appears in the PHOTO pane at the lower left corner of the GET component wind

NextGen® Enterprise EHR Help

Integrate a Document Macro to Filter Finding Images

Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter and open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. In the REASON FOR VISIT pane, select the Menu icon, and then select Manage Reasons for Visit. The Reasons for Visit window opens. From the list at the bottom of the window, select the reason and select Add. From the IMAGES panes, select the Images check box, select FINDINGS and annotate the GET image. A new row is added in the Findings Data Grid with the findings details. An icon appears in the Findings Data Grid row denoting that multiple images are attached to the finding. On the NextGen® Enterprise EHR toolbar, select Save. All the images saved to the patient's chart are renamed to the image description that is Finding Name-Region Description( x. x). From the Categories tab, open the document that contains the GET images and select Generate. The generated document displays the

NextGen® Enterprise EHR Help

Update Existing Descriptions

The Graphical Exam Tool (GET) allows you to update existing descriptions of patient images with the finding name and region description when they get attached to findings. The image description for each finding is unique. The finding with the same name and region is updated as Finding Name - Region Description(x) , where x increases the image description starting from 2. Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter. On the Encounter History or Categories tab, select any image. The image opens. On the main toolbar, select Save. The Save Image File window opens. Enter the Image Description, select the Save image as, and select OK. The image is saved to the patients chart. Open the template that contains the GET component. The GET component window opens. A new Images pane appears on the left side of the tool and enables you to associate images and findings more easily into the workflow. Note: The GET stacks the image tabs instead of d

NextGen® Enterprise EHR Help

Attach Images to a Finding

Each finding can have one image attached to it. After an image is attached, you can attach a different image to the finding. The previous image remains in the patient's chart. You can attach images to findings in the following ways: Attach an image file stored on your file system or saved to the patient's chart for the current encounter. Attach a photo stored on your file system. Import a web camera or video device image. Each attached image has a unique name. If you attach an image from your file system or a web cam/video device, the GET names it as finding name - region description. If you attach an image that has the same name (description) as another image attached to a different finding, the name is followed by a number in parentheses. For example: Basal Cell Skin Cancer, Basal Cell Skin Cancer (2), and Basal Cell Skin Cancer (3). Attach a File System or Patient Chart Image Attach a Photo Import a Web Camera or Video Device Image Parent topic: Graphical Exam Tool (GET) Related tas

NextGen® Enterprise EHR Help

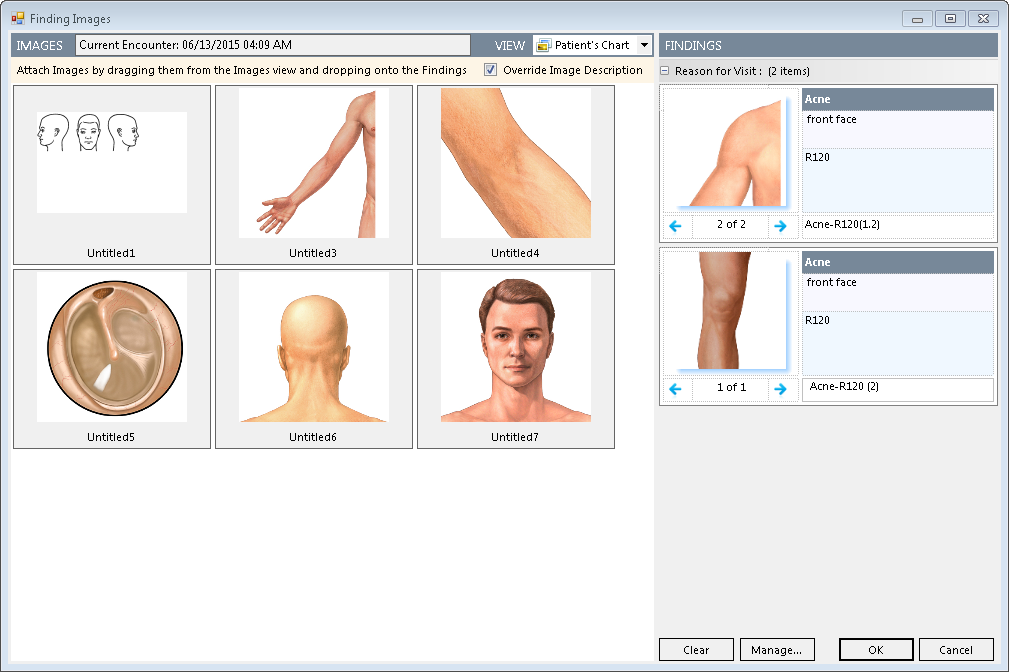

Associate Multiple Images from the Findings Data Grid

Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter. Open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. Select FINDINGS and annotate the GET image. A new row is added in the Findings Data Grid with the findings details. Right-click the findings in the Findings Data Grid, and select Attach Image. The Select Image window opens. Select the image and select Open. The image is added to the Photo section with the following format: Finding Name-Region Description( x. x). You can add multiple images to the Photo section. In the Photo section, you can perform the following: Select the Original icon to view and zoom the image. Select the Manage Images icon to move images up, down, and delete. Select the Close icon to close the image. On the NextGen® Enterprise EHR toolbar, select Save. All the images saved to the patient's chart are renamed to the Image Description that is Finding Name-Region De
