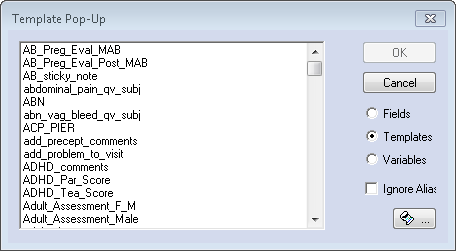

Set up Template Pop-Up Trigger

NextGen® Enterprise EHR Template Editor Help 8

Set up GET Template Notification Data Trigger

The Get Template Notification Data trigger can be used to store and/or display data sent from the Graphical Exam Tool (GET) when a user performs certain actions in NextGen® Enterprise EHR. For example, the trigger can be executed when a user selects an annotation on an active image, selects finding or action hyperlinks in the Findings Grid, or updates the patient's reason for visit. Note: This trigger is available only from a Template Notify event on a Medical Records template. Before you create this trigger, set up a text data entry field or variable on your template to hold the notification parameter. If you set up Template Popup options for a finding, procedure, or lab order in a GET profile, use this trigger together with a Template Pop-Up trigger. The Get Template Notification Data trigger pulls the name of the Popup template into the notification parameter field, and the Template Pop-Up trigger launches that template. Follow the applicable steps in General Trigger Setup. In the T

NextGen® Enterprise EHR Template Editor Help 8

Set up Trigger Script Trigger

The Trigger Scripts enables you to create, maintain, and invoke reusable structured code blocks. These structure code blocks can perform all the operations of existing trigger actions. The Template Runtime provides the ability to debug trigger scripts and set break points in trigger scripts, code execution, and examine values. A debug attribute can be set for any Trigger Script trigger. When a trigger with the debug attribute is executed in runtime, the Trigger Script Debugger window displays and execution is paused at the related trigger scripts and then goes through the code execution, examining values, and evaluating code segments. Follow the applicable steps in General Trigger Setup. Select the Trigger Script action. The Trigger Script window opens. In the Function Script Name list, select the required structured code block or script name. The Comments box displays the related comments and the Parameters grid displays the respective parameters. Note: The Function Script Name list d

NextGen® Enterprise EHR Template Editor Help 8

Set up View Category Trigger

The View Category action automatically enables View Category mode in NextGen® Enterprise EHR. Follow the applicable steps in General Trigger Setup. Select the View Category action. The Select Category window opens. Select an existing category. To save the information and close the window, select OK. If necessary, set up a specific condition for the View Category action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger

NextGen® Enterprise EHR Template Editor Help 8

Set up Launch Template Trigger

The Launch Template action saves and closes the current template and then launches another template for either the current encounter or another specified encounter. You can keep the original template open when the new template is launched. This trigger can be used on Sidebar templates in addition to other template types. Follow the applicable steps in General Trigger Setup. Select the Launch Template action. The Launch Template window opens. To select the template, field, or variable you want to use to launch the template, select Fields, Templates, or Variables, and then select the applicable item from the list that appears. To use the original NextGen® Adaptive Content Engine, select the Ignore Alias check box. Note: This functionality is available only if the NextGen® Adaptive Content Engine have been locked down. To launch the template from an encounter other than the current encounter, select the Encounter ID from the list. Note: If the target encounter is not in the practice you a

NextGen® Enterprise EHR Help

Using Templates

NextGen® Enterprise EHR uses templates to record and store patient demographic and medical information electronically. Templates provide a simple way to enter medical information and compile patient records. All of the data entered into a template can later be used for statistical reports, document generation, and further review of the patient's information. NextGen® Enterprise EHR offers a set of predefined templates known as the NextGen® Adaptive Content Engine and enables the creation of user-defined templates by system administrators. Based on the setup of a specific template or trigger, some workflows may follow those in the NextGen® Enterprise EHR modules (for example, Medications, Procedures, Problems), and some may be specific to the template. For information on NextGen® Adaptive Content Engine, go to NextGen Healthcare Success Community, and download the latest NextGen® Adaptive Content Engine Help and guides for specific specialties. Access Rights to Medical Records View Trac

NextGen® Enterprise EHR Help

Navigation Bar in Popup Template

A Popup template may display a navigation bar at the top, which enables you to go directly to the next step in a workflow without having to return to the main template. The navigation bar contains buttons you can select to open: Another Popup template. One of the following NextGen® Enterprise EHR modules: Allergies (Medication) Diagnoses (Billing ICD List tab in Problems module) Medications Problems (Problem List tab in Problems module) Procedures The buttons display images and tooltips that identify the template or module that can be opened. When you open a Popup template or module from a navigation bar, the parent Popup template is saved and does not remain in view. If a NextGen® Enterprise EHR module is opened, it is refreshed when you close it. Note: If the navigation bar is reconfigured during your work session, you must log off NextGen® Enterprise EHR and then log back on to view the changes. Parent topic: Using Templates
