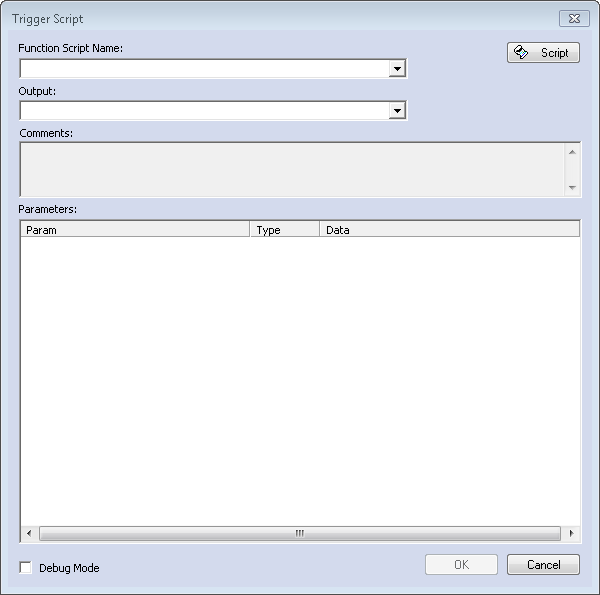

Set up Trigger Script Trigger

NextGen® Enterprise EHR Template Editor Help 8

Set up GET Template Notification Data Trigger

The Get Template Notification Data trigger can be used to store and/or display data sent from the Graphical Exam Tool (GET) when a user performs certain actions in NextGen® Enterprise EHR. For example, the trigger can be executed when a user selects an annotation on an active image, selects finding or action hyperlinks in the Findings Grid, or updates the patient's reason for visit. Note: This trigger is available only from a Template Notify event on a Medical Records template. Before you create this trigger, set up a text data entry field or variable on your template to hold the notification parameter. If you set up Template Popup options for a finding, procedure, or lab order in a GET profile, use this trigger together with a Template Pop-Up trigger. The Get Template Notification Data trigger pulls the name of the Popup template into the notification parameter field, and the Template Pop-Up trigger launches that template. Follow the applicable steps in General Trigger Setup. In the T

NextGen® Enterprise EHR Template Editor Help 8

Set up Refresh Data Grid Trigger

The Refresh Data Grid action refreshes the display of information in the preselected data sheet/grid field at run time. Follow the applicable steps in General Trigger Setup. Select the Refresh Data Grid action. The Refresh Data Grid window opens. Select the specific data sheet/grid you want to be refreshed at run time. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, select Copy to Clipboard. To save the information and close the window, select OK. If necessary, set up a specific condition for the action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger

NextGen® Enterprise EHR Template Editor Help 8

Change a Trigger

You can edit the field, event, action, or condition for an existing trigger. The edit function also provides a quick way for you to add a trigger based on an existing, simple trigger. This capability cannot be used for certain triggers that are tied to cross-reference tables (for example, the Assign Field Value trigger tied to the trig_mf_xref table). To open the Triggers window, do one of the following: Right-click anywhere on the template, and then select Triggers from the shortcut menu. On the Main toolbar, select Triggers. From the View menu, select Triggers. Select a specific field within the template. Select Triggers, select View > Triggers, or right-click the selected field, and then select Triggers from the shortcut menu. Note: The Copy and Paste buttons appear on the Triggers window only when you select a specific field on the template. In the Triggers window, select the trigger you want to change. Information entered for the selected trigger appear in the Trigger, Condition,

NextGen® Enterprise EHR Template Editor Help 8

Assign APSO View Trigger

You can assign the APSO View trigger in a template of Template Editor. The APSO View trigger refreshes or saves the APSO document to the current encounter of the patient in NextGen® Enterprise EHR. Open Template Editor. Select New from the File menu, and then select any template from the list of templates that appear. The template opens. Drag a field from the field toolbar to the template design area. The field properties appear on the right side of the template design area and displays Name and Type of the field. Right-click the field and select Trigger. The Triggers window opens. Select Add New. The Trigger Info window opens. From the Action list, select APSO View. The APSO View window opens. Select one of the following and select OK: Refresh Refreshes the APSO document. Save (refreshes before save) Saves the APSO document to the current encounter. In the Trigger Info window, select OK to save the changes. In the Triggers window, select OK and save the template. Parent topic: Setting

NextGen® Enterprise EHR Template Editor Help 8

Set up View Category Trigger

The View Category action automatically enables View Category mode in NextGen® Enterprise EHR. Follow the applicable steps in General Trigger Setup. Select the View Category action. The Select Category window opens. Select an existing category. To save the information and close the window, select OK. If necessary, set up a specific condition for the View Category action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger

NextGen® Enterprise EHR Template Editor Help 8

Trigger Functions

The Trigger Functions icon has been added in the main toolbar which enables you to create and maintain trigger scripts. The Trigger Script displays a list of NextGen® Enterprise EHR and user-defined trigger scripts. The NextGen® Enterprise EHR trigger scripts can only be edited by NextGen® Enterprise EHR users with NextGen® Enterprise EHR admin access. User-defined scripts can be edited by any user. Note: To manage NextGen® Enterprise EHR trigger scripts, Template Editor must be launched in NextGen® Enterprise EHR Admin mode. If you do not have NextGen® Enterprise EHR admin access, you cannot create NextGen® Enterprise EHR trigger scripts or edit a script. The Template Runtime provides the ability to execute a structured code block which performs all the operations of existing trigger actions. Set Operation Rights for Scripts Create a Trigger Script Update a Trigger Script Delete a Trigger Script Manage Trigger Scripts Code Snippets
