Set up a Template Data Graph

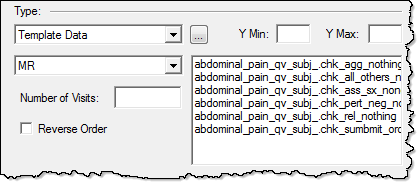

To set up a Template Data graph, select the applicable options from the Type and Style sections on the Insert Graph window.
  1. If necessary, from the first list in the Type section, select Template Data (default).
  2. From the second list, select one of the following template types:
    • MR (default)
    • MR Ext - Current Encounter
    • MR Ext - All Encounters
    • DM Ext

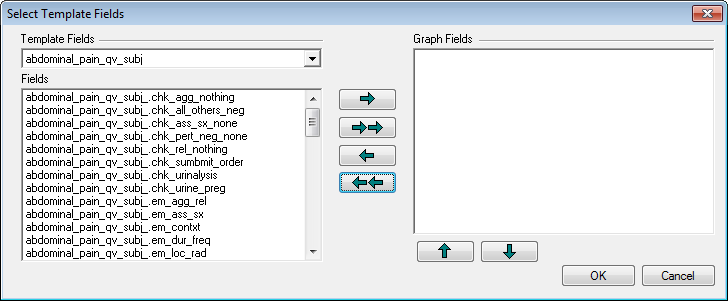

  3. To display the Select Template Fields window, select the ellipsis button.
  4. From the Template Fields list, select the template that data is graphed from.
    The Fields window displays the fields in the selected template.

  5. In the Fields window, select each template field you want to include, and move it to the Graph Fields window.
    1. To select fields individually, select the field, and then select Move Right.
    2. To select the first six fields, select Move All Right.
    3. To move a field up or down one position in the Graph Fields window, select the field you want to move, and then select Move Up or Move Down. To remove a field from the Graph Fields window, select it, and then select Move Left.
    4. To remove all selected fields from the Graph Fields window, select Move All Left.
  6. When you have selected all fields to graph, select OK.
    The selected fields appear in the window in the Type section of the Insert Graph window.

  7. If you are creating a graph for an MR template, do the following:
    1. In the Number of Visits box, enter the number of encounters to be graphed at run time.
    2. To graph the encounters in reverse order, select the Reverse Order check box .
  8. If necessary, in the Y Min and Y Max boxes, enter the minimum and maximum Y-axis (vertical scale) values for the graph.
  9. To set up the graph style, select the Bar or Line (default) option.
