To set up a Template Data graph, select the applicable options from the Type and Style sections on the Insert Graph window.
- If necessary, from the first list in the Type section, select Template Data (default).
- From the second list, select one of the following template types:
- MR (default)
- MR Ext - Current Encounter
- MR Ext - All Encounters
- DM Ext

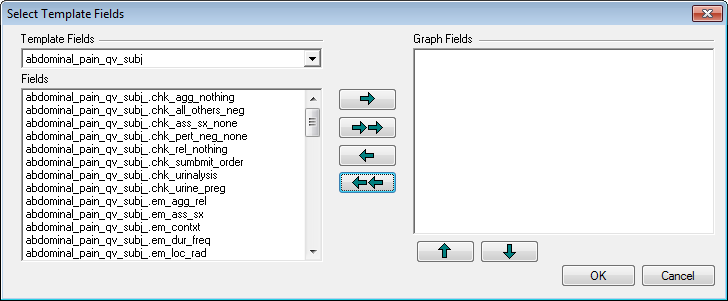

- To display the Select Template Fields window, select the ellipsis button.
- From the Template Fields list, select the template that data is graphed from.
The
Fields window displays the fields in the selected template.
- In the Fields window, select each template field you want to include, and move it to the Graph Fields window.
Note: You can select up to six template fields to graph.
- To select fields individually, select the field, and then select Move Right.
- To select the first six fields, select Move All Right.
- To move a field up or down one position in the Graph Fields window, select the field you want to move, and then select Move Up or Move Down. To remove a field from the Graph Fields window, select it, and then select Move Left.
- To remove all selected fields from the Graph Fields window, select Move All Left.
- When you have selected all fields to graph, select OK.

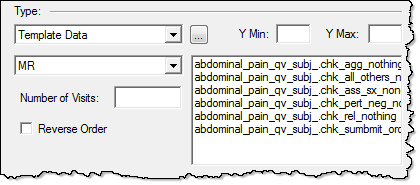

The selected fields appear in the window in the
Type section of the
Insert Graph window.
- If you are creating a graph for an MR template, do the following:
- In the Number of Visits box, enter the number of encounters to be graphed at run time.
- To graph the encounters in reverse order, select the Reverse Order check box .
Note: These options do not appear if you select another template type.
- If necessary, in the Y Min and Y Max boxes, enter the minimum and maximum Y-axis (vertical scale) values for the graph.
- To set up the graph style, select the Bar or Line (default) option.
