Generate a Report

NextGen® Enterprise EHR Help

View a Report

Access the Integrated Equipment Module. Scroll through the list of existing reports, and select the View Report button for any report that you want to see. View Report buttons The report opens in a new window. For further details, refer to the topics on viewing reports in the following chapters: GE CardioSoft Equipment Midmark Equipment Hillrom Welch Allyn Devices Hillrom HeartCentrix Devices Parent topic: Basic Workflow for Integrated Equipment Module

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

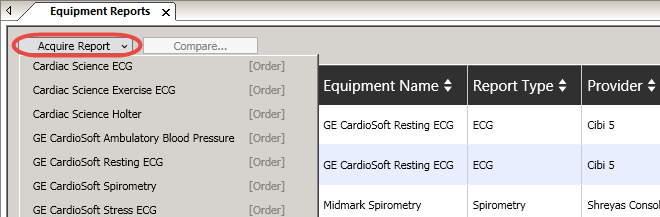

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap

NextGen® Enterprise EHR Help

Open the Integrated Equipment Module

Open NextGen® Enterprise EHR. Select a patient, and then create an encounter or open an unlocked encounter. Do one of the following: From the Main toolbar, select File > Summary > Equipment. From the Encounter History tab, if an encounter contains any equipment reports, select the equipment report icon. The Equipment Reports pane appears. This pane displays the Integrated Equipment module. Integrated Equipment Module in Equipment Reports Pane You can acquire data and view reports for specific equipment. Parent topic: Basic Workflow for Integrated Equipment Module

NextGen® Enterprise EHR Help

Create GE Stress ECG Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft, refer to the appropriate GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Stress ECG. The GE CardioSoft application starts and displays the Test Information window. On the Test Information window: For each tab, enter or verify all relevant information and select OK. Before the test starts: Check the applied electrodes and verify the signal quality in all leads. If needed, configure and select appropriate settings and protocols. Select the F1: pretest button to start the Pretest phase. In the Pretest phase: Select the 12SL analysis button to acquire and analyze a baseline ECG. Select the F1: pretest button to advance to the next stage in the selected protocol. After the la

NextGen® Enterprise EHR Help

Create Welch Allyn® Resting ECG Reports

Before you begin Before you start recording, ensure that the device is connected to the PC. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. From the Acquire Report list, select Welch Allyn ECG.The Diagnostic Cardiology Suite™ or CardioPerfect® Workstation application starts and opens the ECG capture screen. Capture an ECG as described in the appropriate Welch Allyn® Diagnostic Cardiology Suite™ or CardioPerfect® resting ECG user manual. Close the Diagnostic Cardiology Suite™ or CardioPerfect® application to return to the IEM.A new Welch Allyn Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. If you confirmed the interpretation, the Test Status column in the IEM grid displays Confirmed; otherwise, it displays UNCONFIRMED. Parent topic: Hillrom Welch Allyn Devices

NextGen® Enterprise EHR Help

Basic Workflow for Integrated Equipment Module

You can perform tasks for various types of equipment reports, such as generating, viewing, faxing, comparing, and deleting. IEM User Interface Versions Two versions of the Integrated Equipment Module are available to support different levels of Midmark equipment. Open the Integrated Equipment Module You can open the Integrated Equipment module in NextGen® Enterprise EHR. Generate a Report How to generate reports in the Integrated Equipment Module. View a Report How to view reports in the Integrated Equipment Module. Fax a Report How to fax an equipment report from the Integrated Equipment Module. Compare Reports How to compare Midmark reports in the Integrated Equipment Module. Delete a Report How to delete a report from the Integrated Equipment Module. Task Workflow Notification in the Equipment Module Actions in the Integrated Equipment Module can be tracked in the NextGen® Enterprise EHR Workflow Module. PDF Generation The Integrated Equipment Module can attach a report in PDF forma
