Create GE Resting ECG Reports

Before you start recording, ensure that the equipment is connected to the PC.

For more information on how to use GE CardioSoft, refer to the GE CardioSoft Operator's Manual.

  1. Prepare the patient for the test as needed.
  2. In NextGen® Enterprise EHR, load a patient and select a location and provider.
  3. Access the IEM.
  4. Select Acquire Report and select GE CardioSoft Resting ECG.

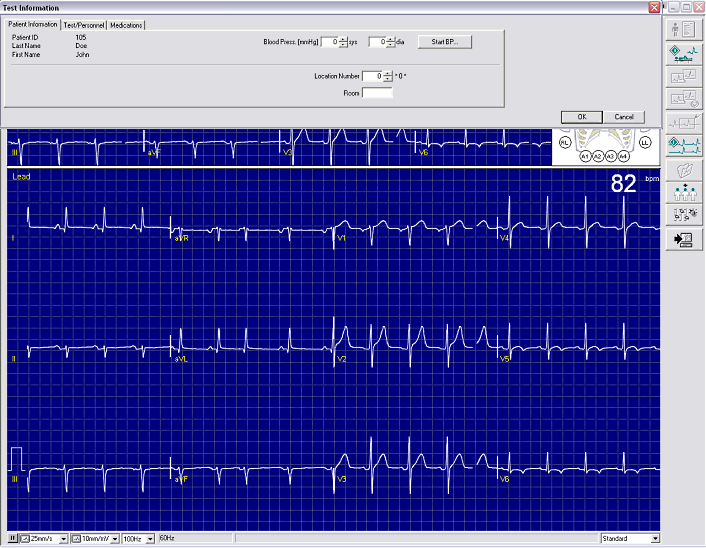

    The GE CardioSoft application starts and displays the Test Information window.

  5. Before the test starts, configure and select the appropriate settings as needed.
  6. On the Test Information window:
    • For each tab, enter or verify all relevant information. Then select OK.
    • If you are performing a:
      • 10-second ECG with analysis, select the ECG Acquisition button.
      • Full disclosure ECG, select the Start Full Disclosure ECG button.
    • Select the Stop FD/Post Test Review button to stop the test and display the Test Summary window.

    • Use the tabs at the top of the page to view additional data.
    • Perform any post-test related tasks by clicking the buttons on the Test Summary window, as needed.
    • Select the Back to EMR button to return to the IEM.

      A GE CardioSoft Resting ECG report appears in the IEM grid and an Equipment Report indicator appears in the History toolbar under the encounter.
