Configure Document Management Image Exports

You can control which Document Management (DM) images are included in Continuity of Care Document (CCD) and Consolidated Clinical Document Architecture (C-CDA) exports.

  1. In the Data Share pane, select Open the Data Share Settings Slider Open the Data Share Settings Slider.
  2. From Document Management Image Export, select Show Document Management Images.
    Document Management Image Export

  3. To display only DM images that have been collected within a set number of days, enter the number of days in Default Viewable Days.
    Users can override this date range when selecting images to export.
  4. To allow an export to include all categories of DM images, select Documents.
  5. To exclude some categories of DM images from being available for export, do the following:
    1. Select Categories.

      The Document Management Category Filter window opens.

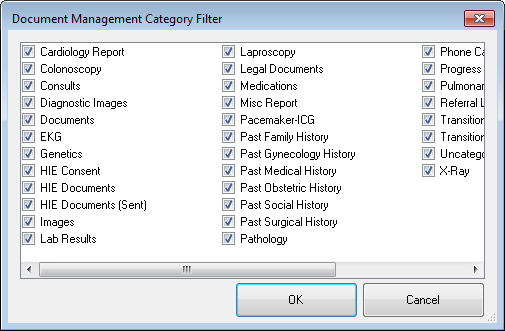

      Document Management Category Filter

    2. Clear any image categories you do not want to display, and select OK.
