Add a Person or Patient Photo
Add a Person or Patient Photo
You can add a photo to the demographic record for a person or patient.
Note:
Color photos scanned using the Black and White setting are distorted. Use the Gray Scale setting to maintain the quality of the image.
Open the
Person Information
or
Patient Information
window for the desired person or patient.
Right-click the picture field, and do one of the following:
Select
New
to scan a new photograph. If no images have been scanned, only
New
is selectable.
Select
Open
to edit the picture currently stored.

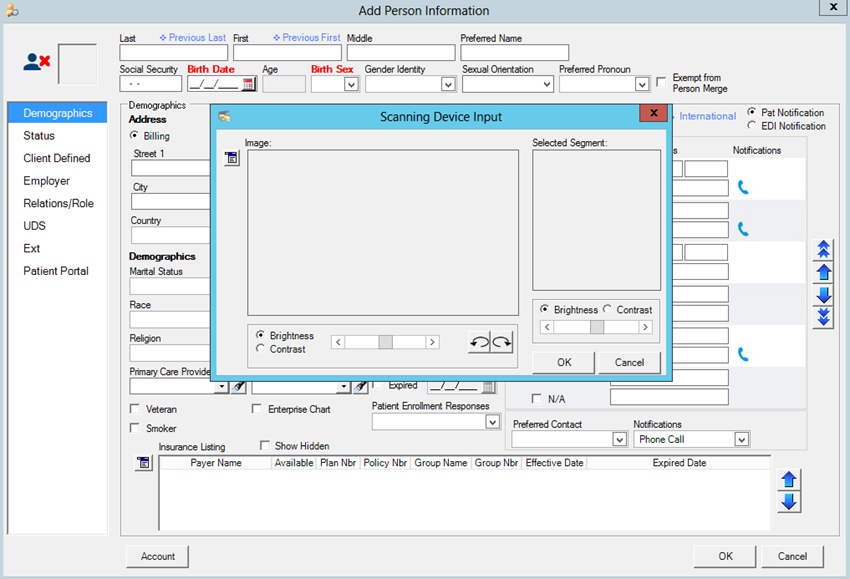

The
Scanning Device Input
window opens.
Place the patient's driver's license or ID Card in the scanner and adjust the scan guide so that it fits the original.
Select the open menu
, and select
Acquire
.
When the scanner has finished scanning, the image appears on the window.
Select the following options to help you adjust the scanned image:
Use the
keys to rotate the card, if necessary, so that it appears upright.
You can
Crop
the image to get only the detail needed.
Use the
Copy/Paste
option to move the image into other files, if needed.
Use the
AutoScan Mode
to start the scanning process as soon as you open this window.
Use the
Show Scanner Interface
option to display the scanner's options box, which enables you to manipulate the image you are scanning.
Use the
Brightness/Contrast
options to change and improve the appearance of the image.
The image in the
Selected Segment
box appears on the
Demographics
tab.
The image in the
Selected Segment
box appears on the
Demographics
tab.
If this image needs to be replaced, right-click in the
Selected Segment
, and choose
Delete
.
