Add Additional Images to a Finding

To clear the image from the finding, select the Clear button.

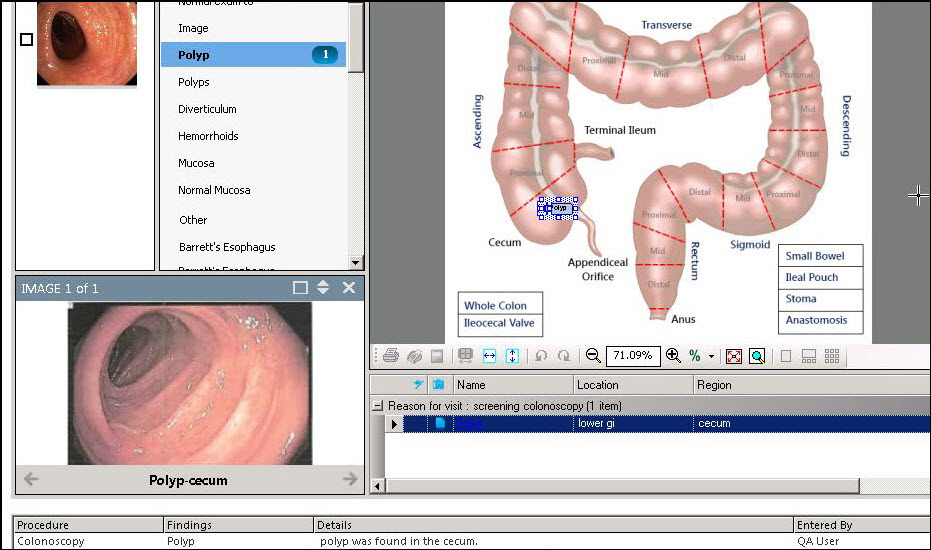

If you select the finding associated with an additional image in the procedure findings grid below GET, the image attached to the finding appears to the left of GET below the Findings section.

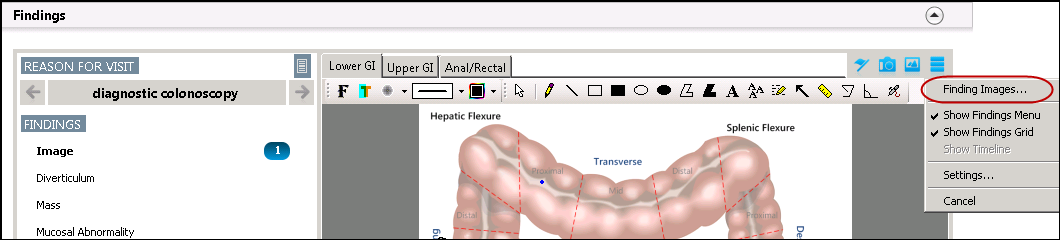

In the Findings panel, you can also attach an image to a finding using the Setting menu option of the Image section in the Findings panel.

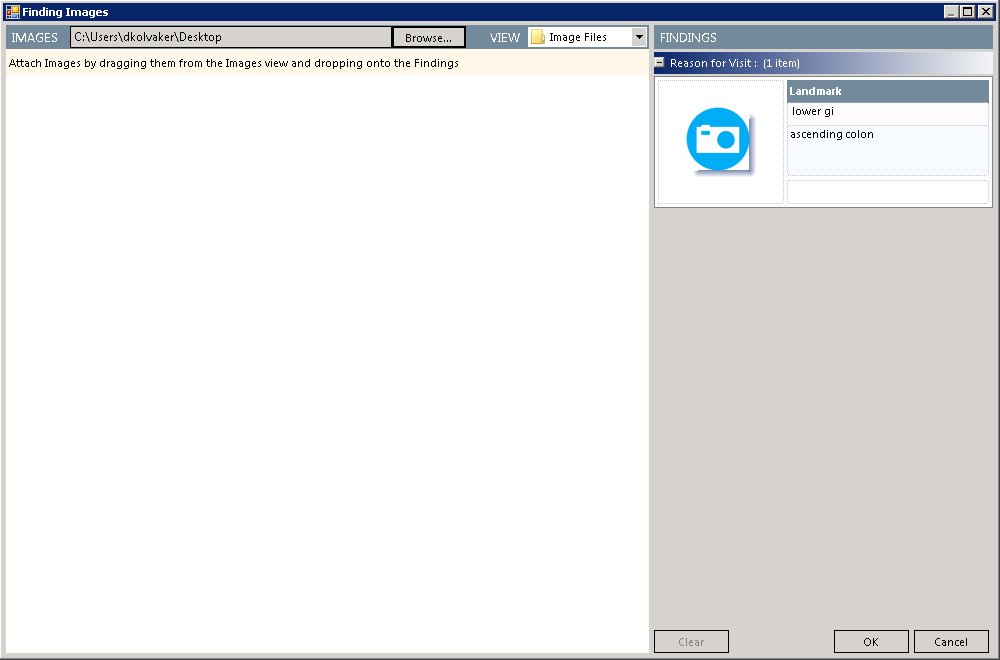

After you search and select an image from the images file or patient chart, you need to first select the checkbox of the applicable image(s) in the Images section, and then select the finding from the Findings section, and finally select a location on the GET.

The selected finding appears in the GET and the grid below GET. The associated image appears in the left pane below the Images and Findings sections.
