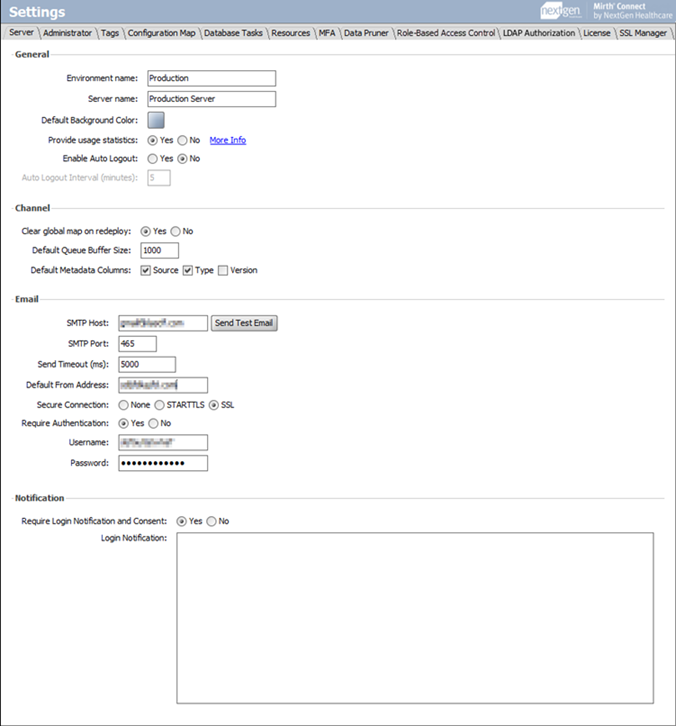

Server Settings Tab
This tab shows general global settings that pertain to the server or default channel properties.
General Settings
Channel Settings
Email Settings
Notification Settings
Tasks
Restore Config
Clear All Statistics
Recommendations
Explore
Mirth® Connect by NextGen Healthcare User Guide
Tags Settings Tab
This tab provides a general management view for all channel tags configured on your server. You can edit tag names and colors, and easily include multiple tags across multiple channels with a few actions. Image of the Tags tab where you can manage channel tags. Tags Table Channels Table Parent topic: Settings View
Mirth® Connect by NextGen Healthcare User Guide
Settings Tasks
The following context-specific tasks are available from the Settings View and are common across most of the tabs: Task Icon Task Name Description Refresh Updates the currently selected Settings tab. Save Saves all configured settings on the currently selected Settings tab. Parent topic: Settings View
Mirth® Connect by NextGen Healthcare User Guide
Navigation
Select the Settings link in the Mirth® Connect task pane on the top-left: side of the window. This section is separated into the following topics: Server Settings Tab Administrator Settings Tab Tags Settings Tab Configuration Map Settings Tab Database Tasks Settings Tab Resources Settings Tab Data Pruner Settings Tab Settings Tasks Parent topic: Settings View
Mirth® Connect by NextGen Healthcare User Guide
Configuration Map Settings Tab
The configuration map is one of the available variable maps that can be used from within channel properties or scripts. The fact that it is stored in the Application Data Directory as a flat file makes it unique. It is intentionally not included in server configuration exports. Because of this, you can use variables from this map in your channel properties, and the same channel can be used across multiple Mirth® Connect servers without having to edit the channel for each server. By default the values in the table are not immediately shown. Select Show values to reveal all of them on screen. The Configuration Map tab enables you to edit the entries in the configuration map for the current server. Double-click any of the cells in the table to edit the values. Select the Add / Remove buttons on the top-right side of the window to add or remove entries from the table. Image of the Configuration Map tab Table Columns Tasks Parent topic: Settings View
Mirth® Connect by NextGen Healthcare User Guide
Settings View
The Settings view encompasses a wide variety of management settings and tasks for your Mirth® Connect server. Some of the settings are channel-specific (such as channel tags), and others are more general (such as default email settings). Image of the Settings view. Navigation Server Settings Tab The Server Settings tab shows general global settings that pertain to the server or default channel properties. Administrator Settings Tab The Administrator Settings tab shows settings specific to the client machine running the Mirth® Connect Administrator. Tags Settings Tab The Tags tab provides a general management view for all channel tags configured on your server. Configuration Map Settings Tab The Configuration Map tab enables you to edit the entries in the configuration map for the current server. Database Tasks Settings Tab The Database Tasks Settings tab shows you all cleanup or optimization tasks for the internal Mirth® Connect database. Resources Settings Tab The Resource Settings ta
Mirth® Connect by NextGen Healthcare User Guide
Restore Config
After selecting a server configuration XML file to restore, you will be presented with the following dialog: Select Yes to proceed, and optionally choose whether you want all resulting enabled channels to automatically be deployed. Parent topic: Server Settings Tab
