Tags Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Server Settings Tab

This tab shows general global settings that pertain to the server or default channel properties. Image of the Server Settings tab. General Settings Channel Settings Email Settings Notification Settings Tasks Restore Config Clear All Statistics Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

Configuration Map Settings Tab

The configuration map is one of the available variable maps that can be used from within channel properties or scripts. The fact that it is stored in the Application Data Directory as a flat file makes it unique. It is intentionally not included in server configuration exports. Because of this, you can use variables from this map in your channel properties, and the same channel can be used across multiple Mirth® Connect servers without having to edit the channel for each server. By default the values in the table are not immediately shown. Select Show values to reveal all of them on screen. The Configuration Map tab enables you to edit the entries in the configuration map for the current server. Double-click any of the cells in the table to edit the values. Select the Add / Remove buttons on the top-right side of the window to add or remove entries from the table. Image of the Configuration Map tab Table Columns Tasks Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

Settings Tasks

The following context-specific tasks are available from the Settings View and are common across most of the tabs: Task Icon Task Name Description Refresh Updates the currently selected Settings tab. Save Saves all configured settings on the currently selected Settings tab. Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

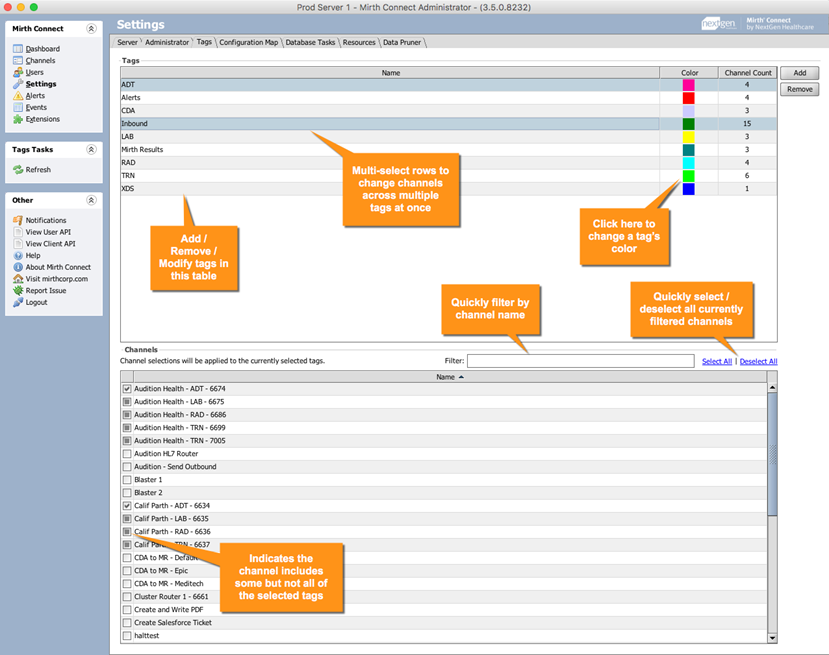

Tags Table

This is the table located in the top half of the Tags tab. The table has the following columns: Column Description Name The name of the tag. Double-click this column to edit the name. Color The color of the tag, shown when tags are rendered inside the Dashboard / Channels views. Select the colored box in the middle of the column to change the tag color. Channel Count The number of channels that currently include this tag. For general information on working with tables, see Working With Tables. Adding a Tag Removing a Tag Parent topic: Tags Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Channels Table

This table shows a list of all channels currently configured on your server. Select one of the column headers at the top of the table to sort by selection status or channel name. Select the check boxes to include the selected tags on specific channels. You can use the Select All / Deselect All links to quickly include or exclude the selected tags on all currently filtered channels. Indeterminate Check Boxes Parent topic: Tags Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Change How Tags Display

For information on how to change how tags display in the channel table, see Change How Tags Are Displayed. Parent topic: Channel Table
