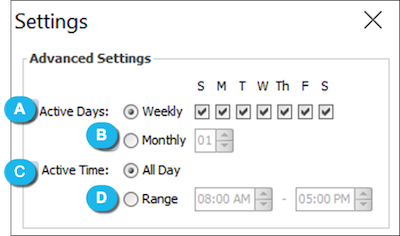

Advanced Settings

Item	Name	Description
A	Active Days: Weekly	Select this option to only poll on the days of the week that are checked to the right.
B	Active Days: Monthly	Select this option to only poll on the specified day of the month.
C	Active Time: All Day	If selected, polling may occur at any time during the day.
D	Active Time: Range	If selected, polling will only occur during the specified time range.

Mirth® Connect by NextGen Healthcare User Guide

Time Schedule Settings

Item Name Description A Time The specific time of day to poll. B Advanced Allows configuring day-of-week / day-of-month settings. For additional information, see Advanced Settings. Parent topic: Polling Settings

Mirth® Connect by NextGen Healthcare User Guide

Interval Schedule Settings

Item Name Description A Value The number of units to wait in between polling windows. The value, when resolved with the unit type, must be less than 24 hours of time. B Unit The unit of time to use in conjunction with the value to determine how long to wait in between polling windows. Available units are: Milliseconds Seconds Minutes Hours C Advanced Enables configuring day-of-week / day-of-month settings and time ranges. Note: Only one polling window is ever active at any given time for a given source connector. For example, if you have a channel set to poll every 5 seconds, but a single message takes 6 seconds to process, a new polling job will not begin while the first one is still working. In this example the "effective" polling interval would be 10 seconds, because every other poll trigger gets skipped. Note: The interval does not "start counting down" from the time when the channel is deployed/started. Instead, it starts on a consistent schedule based on the start of the time ran

Mirth® Connect by NextGen Healthcare User Guide

Cron Schedule Settings

This schedule type gives you full control to enable advanced, nuanced polling schedules using Cron-like expressions. Select the Add / Delete buttons to add or remove entries from the table. The expressions must abide by the following format: Field Required? Allowed Values Special Characters Seconds Yes 0-59 , - * / Minutes Yes 0-59 , - * / Hours Yes 0-23 , - * / Day of Month Yes 1-31 , - * ? / L W Month Yes 1-12 or JAN-DEC , - * / Day of Week Yes 1-7 or SUN-SAT , - * ? / L # Year No 1970-2099 , - * / Special Characters * All values ? No specific range - Used to specify ranges , Used to specify list of values / Used to specify increments L Used to specify the "last of" W Used to specify the nearest weekday # Used to specify the Nth day of the month Example: The expression "0 */5 8-17 * * ?" means to poll every 5 minutes starting at 8 AM and ending at 5 PM every day. Note: Specifying both a day-of-week and day-of-month is not supported. A "?" character must be used in one of these fields

Mirth® Connect by NextGen Healthcare User Guide

Polling Settings

These settings are for connectors that do not listen passively for messages, but instead actively poll according to a specific schedule. This may be once every few seconds, at a specific time of day, or something more complex. Supported connectors include the Database Reader, File Reader, and JavaScript Reader. Item Name Description A Schedule Type Determines how the polling schedule is set. This could be on a specific interval, a time of day, or a custom expression. B Next poll at Given the current polling settings, shows the next date and time that the source connector will poll for new messages (assuming it is deployed). This value is updated once when you navigate to the Source tab, or when you update the schedule settings. It does not continue to update automatically. C Poll Once on Start Select Yes to immediately poll once when the channel is started. All subsequent polling will follow the specified scheduling settings. D Schedule Settings These are settings specific to the sched

Advanced Alerting User Guide

Alerts Table

The Alerts table shows the current status and action counters for all your configured alerts. The Alerts table is the main section of the Alerts View that shows the current status and action counters for all your configured alerts. Image of the Alerts table. Column Description A Status Indicates whether the alert is enabled or disabled. B Name The name of the alert. C Id The unique ID for the alert. D Triggered The trigger count for the alert. This is the number of times the condition for the alert has been satisfied, but not necessarily how many alerts have been sent out. If you have multiple actions set on an alert, it may trigger once but send out multiple alerts. This number can be cleared out by using the Clear Trigger Count task. E Alerted For enabled alerts, the number of times the alert has taken action (e.g. sent an email) since it was last enabled. F Current Level The current escalation level for the alert. All alerts start at the Normal escalation level. Depending on your se

NextGen® Enterprise EHR Template Editor Help 8

Enable a Trigger

Open the Triggers window. Select the trigger you want to activate. Select Enable. The trigger check mark is added. Parent topic: General Trigger Setup
