Add a New Device And Map Multiple Gateway IDs to the VeriFone IP Address

  1. In NextGen® Enterprise PM, select Admin > Preferences > Practice.
    The Practice Preferences window opens.
  2. From Preference List, select Payment Processing.
  3. In Credit Card Processor, select TSYS-Express.

  4. In Default CCOF Gateway ID, enter the default gateway ID.
  5. To add a new device, select Gateway IDs.

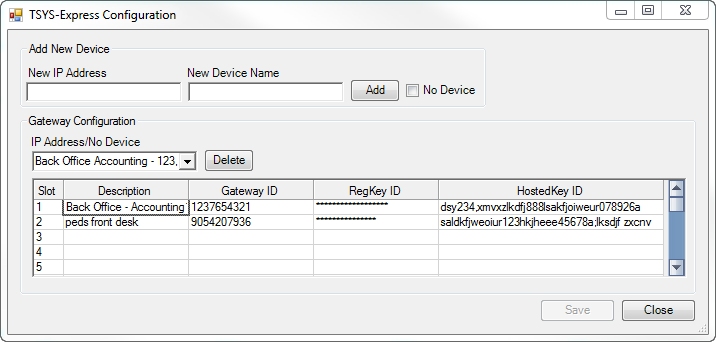

    The TSYS-Express Configuration window opens.

  6. To map multiple gateway IDs to a single IP address, do the following:
    1. In New IP Address, enter the IP address of the VeriFone device.
    2. Type the device name and then select Add.
      The IP address and device name are added to the IP Address/No Device list.
    3. To add the description, gateway ID, RegKey ID, and HostedKey ID, select the relevant IP address from the IP Address/No Device list.
      TSYS provides the values of the Gateway ID, RegKey ID, and HostedKey ID fields.
    4. Enter the description, gateway ID, RegKey ID, and HostedKey ID of the device in the grid.
    5. To map additional devices to the same IP address, repeat step 5.
  7. To add another IP address, repeat step 4. Complete steps 4 and 5 for each IP address used by the practice.
  8. Select Save.
    After you enter and save all IP addresses and devices on the TSYS-Express Configuration window, pair each IP address and device to the computers on the Payment Processing tab on the User Preferences window. For more information on setting up the user preferences, see Set Up User Preferences for the VeriFone Device - TSYS Express.
