Set Up User Preferences for the VeriFone Device

Help Guide for NextGen® Enterprise PM 8

Practice Preferences Payment Processing for the VeriFone Device - TSYS Express

In Practice Preferences Payment Processing you can: Select credit cards and check payment methods for accounts in good standing and in bad debt status. Enable a unique token ID for each credit card on file. When using a card on file, payment transactions use the unique token ID instead of the credit card number. Enable VeriFone devices with a unique Gateway ID Map the default gateways ID to the VeriFone IP address For current TSYS users (in versions prior to 5.8 UD3) who want to upgrade to the TSYS Express platform, you can do the following: Contact the vendor to get new credentials before changing to TSYS Express (this is mandatory) Purchase a VeriFone VX805 device for credit card payment processing. Parent topic: VeriFone Credit Card Processing Preferences Configuration - TSYS Express

Help Guide for NextGen® Enterprise PM 8

Configure Payment Processing for TSYS Express with VeriFone Device

In NextGen® Enterprise PM, select Admin > Preferences > Practice. The Practice Preferences window opens. From Preference List, select Payment Processing. In Credit Card Processor, select TSYS-Express. To save a unique credit card token ID on the file for future payments, select Save Credit Card Token ID on File. To enter a new device or to map multiple gateway IDs to the VeriFone IP address, select Gateway IDs. For more information about entering a new device and mapping multiple gateway IDs to the VeriFone IP address, go to Add a New Device And Map Multiple Gateway IDs to the VeriFone IP Address. To use a default gateway ID for credit cards on file while making a payment, enter the Default CCOF Gateway ID. Select the payment method and the bad debt payment method. For more information, see Set Up Practice Preferences for Credit Card Processors. Select OK. Parent topic: VeriFone Credit Card Processing Preferences Configuration - TSYS Express

Help Guide for NextGen® Enterprise PM 8

Add a New Device And Map Multiple Gateway IDs to the VeriFone IP Address

In NextGen® Enterprise PM, select Admin > Preferences > Practice. The Practice Preferences window opens. From Preference List, select Payment Processing. In Credit Card Processor, select TSYS-Express. In Default CCOF Gateway ID, enter the default gateway ID. To add a new device, select Gateway IDs. The TSYS-Express Configuration window opens. To map multiple gateway IDs to a single IP address, do the following: In New IP Address, enter the IP address of the VeriFone device. Type the device name and then select Add. The IP address and device name are added to the IP Address/No Device list. To add the description, gateway ID, RegKey ID, and HostedKey ID, select the relevant IP address from the IP Address/No Device list. TSYS provides the values of the Gateway ID, RegKey ID, and HostedKey ID fields. Enter the description, gateway ID, RegKey ID, and HostedKey ID of the device in the grid. To map additional devices to the same IP address, repeat step 5. To add another IP address, repeat ste

Help Guide for NextGen® Enterprise PM 8

VeriFone Credit Card Processing Preferences Configuration - TSYS Express

Configuration for credit card processing using the VeriFone device involves data set up in Enterprise, Practice, and User preferences. To configure the VeriFone device, perform these procedures in the following order. Set Up Enterprise Preferences for the processor - TSYS Express Practice Preferences Payment Processing for the VeriFone Device - TSYS Express Configure Payment Processing for TSYS Express with VeriFone Device Set Up User Preferences for the VeriFone Device - TSYS Express Practice Preferences Payment Processing for the VeriFone Device - TSYS Express Configure Payment Processing for TSYS Express with VeriFone Device You can configure various payment processing methods for TSYS Express when attached with the VeriFone device. Add a New Device And Map Multiple Gateway IDs to the VeriFone IP Address Set Up User Preferences for the VeriFone Device - TSYS Express Parent topic: TSYS Express Payment Processing

Help Guide for NextGen® Enterprise PM 8

Set Up User Preferences for No Device Credit Card Processing - TSYS Express

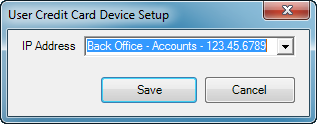

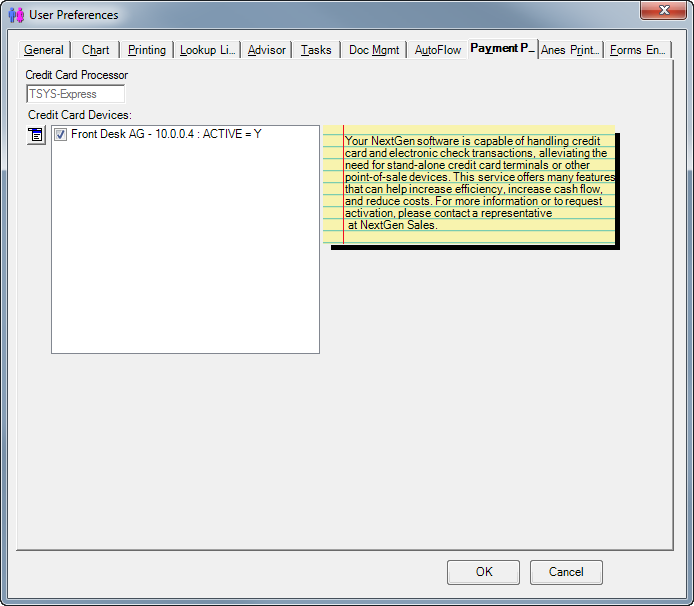

You must set up and add a No Device configuration to each user who will be processing credit card payments without a device. The No Device configuration is generated from the No Device information entered on the TSYS-Express Configuration window in Practice Preferences Payment Processing. A user or a workstation can be linked to both a No Device configuration and a VeriFone device. Select Admin > Preferences > User > General > Payment Processing tab. The Payment Processing tab on the User Preferences window opens. To link a workstation with a No Device configuration, under Credit Card Devices, select the open menu button and then click New. The User Credit Card Device Setup window opens. Select the No Device configuration and then select Save. The No Device configuration is populated in the Credit Card Devices list. Note: Only one No Device configuration can be set up for each practice. If the No Device configuration is the default selection for your work station, select the No Device

Help Guide for NextGen® Enterprise PM 8

TSYS Express Payment Processing

Processing electronic transactions through the TSYS Express platform enables you to do the following: Store credit card token IDs. Send the user ID of the NextGen user processing the payment. Process the Discover, Mastercard, American Express, or Visa credit card payments through the VeriFone card reader device. Apply credit card payments using the TSYS webform (no device needed). Add credit card on file to the patient's account. Create a task for credit card expiration. User Preferences can include both the No Device configuration and the VeriFone device configuration. You can refer to the following topics for information on configuring credit card processing with No Device or the VeriFone device. No Device Credit Card Processing Preferences Setup - TSYS Express VeriFone Credit Card Processing Preferences Configuration - TSYS Express VeriFone Credit Card Processing Preferences Configuration - TSYS Express No Device Credit Card Processing Preferences Setup - TSYS Express Credit Card on
