Programming Honeywell® 1400g2D Scanner to Scan 2D Barcodes

You must program the scanner because 2D barcodes terminate variable length data contained in the translated barcode with a “group separator” sequence that the scanner passes as a hexadecimal x1D. Programming the scanner replaces the hexadecimal character x1D with hexadecimal character x23.

To scan 2D barcodes, your scanner must:

• Support scanning of GS1 Datamatrix 2D barcodes.
• Allow for substitution of a scanned code for another code when transmitting.

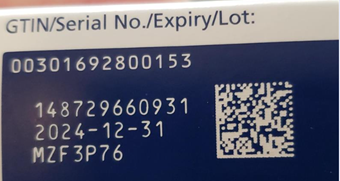

Following is an example of GS1 Datamatrix 2D barcode:

For more information, go to NextGen Healthcare Success Community, and download the latest Configuration Guide forNextGen®Medication Inventory Control.
