Set up Goto Field Trigger

NextGen® Enterprise EHR Template Editor Help 8

Enable Control Trigger

The Enable Control action enables the selected field(s) on a template at run time. You cannot enable the following types of fields: web browser, patient image, graph, lab order, sub template, and GET component. Note: If you enable a collapsible panel, all fields on it are also enabled. You can disable specific fields on the panel separately. All other fields on the panel remain enabled. Follow the steps in General Trigger Setup. Select the Enable Control action. The Enable Template Field window opens. From the Available Template Fields pane, select each field you want to enable, and then select Add. The selected field appears in the Fields to Enable pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Enable pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected

NextGen® Enterprise EHR Template Editor Help 8

Disable Control Trigger

The Disable Control action disables the selected field(s) on a template at run time. You cannot disable the following types of fields: web browser, patient image, graph, lab order, sub template, and GET component. Note: If you disable a collapsible panel, all fields on it are also disabled. You can enable specific fields on the panel separately. All other fields on the panel remain disabled. Follow the applicable steps in General Trigger Setup. Select the Disable Control action. The Disable Template Field window opens. From the Available Template Fields pane, select each field you want to disable, and then select Add. The selected fields appear in the Fields to Disable pane and the OK button is enabled. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Disable pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only d

NextGen® Enterprise EHR Template Editor Help 8

Set up Show Item Trigger

The Show Item action displays the selected, previously hidden field(s) on the template at run time. Follow the steps in General Trigger Setup. Select the Show Item action. The Show Template Field window opens. From the Available Template Fields pane, select each field you want to show, and then select Add. The selected fields appear in the Fields to Show pane. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Show pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected, if applicable to the action. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the labe

NextGen® Enterprise EHR Template Editor Help 8

Set up Grid Row Select Trigger

Follow the applicable steps in General Trigger Setup. Select the Grid Row Select action. The Grid Row Select window opens. Select the required data sheet list. Note: Data Flow Sheet and Lab Summary Sheet data grid types are not supported. In Search Column, select the data sheet fields from the list. In Find, select the edit fields that is on the template from the list. To clear the selected row, select the deselect option from the list. To suppress the selected row event, select the Suppress Row Select Event check box. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to Clipboard. To return to the Trigger Info window, select OK. If necessary, set up a specific condition for the Grid Row Select action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Goto Field Trigger

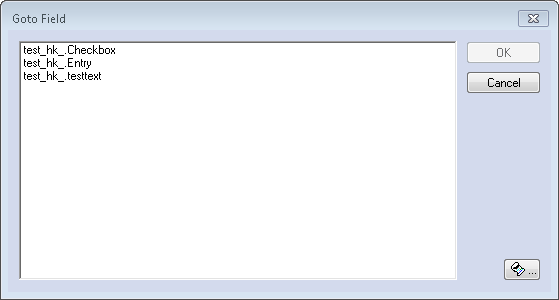

The Goto Field action changes the selected field on a template by moving the cursor to the next preselected field. This trigger can be used to go to a field on a collapsible panel. Follow the applicable steps in General Trigger Setup. To display the Goto Field window, select the Goto Field action . Select a field from the list. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to Clipboard. Select OK. If necessary, set up a specific condition for the Goto Field action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger See also General Trigger Setup

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Toggle Item Trigger

You can use the Toggle Item trigger to set up trigger for Enable/Disable or Show/Hide actions. Follow the applicable steps in General Trigger Setup. Select the Toggle Item action.The Toggle Item window opens. From the Action list, select the applicable action. Enable or Disable Show or Hide From the Available Template Fields pane, select each field you want to show, and then select Add.The selected fields appear in the Fields to Show pane. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Show pane and selecting the Remove button. From the Filter list, select the required filters.The Available Template Fields pane now only displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected, if applicable to the action. The field that triggers the action is not included. You can remove any of the selected fields and add others.
