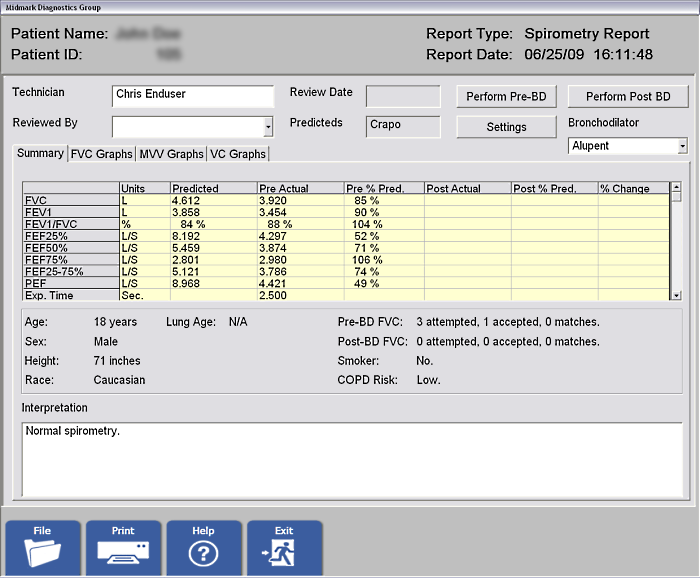

View Midmark Spirometer Reports

NextGen® Enterprise EHR Help

Create New Midmark Spirometry Tests

The Midmark spirometer interface enables you to choose among FVC, VC, and MVV tests in both Pre-Bronchodilator (Pre-BD) and Post-Bronchodilator (Post-BD) modes. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark Spirometer. If the Check Missing Information window appears, enter any missing values that you wish to and select Save and Continue. If you omit the Race, Date of Birth, Sex, or Height values, the following prompt appears: Select Yes to continue or No to return to the previous window. The Spirometry Test window opens. If the Spirometer has not been calibrated, a message appears, offering to perform calibration. Select Yes to perform the calibration or No to continue with the test. For details on how to perform the calibration, refer to the IQmark Digital Spirometer Operation Manual. On the Spirometry Test window: Select Settin

NextGen® Enterprise EHR Help

Compare Midmark Spirometry Reports

You can compare up to ten Midmark Spirometry reports from the same patient. For more information on how to use Midmark functionalities, refer to the appropriate Midmark spirometry operation manual. Open the Integrated Equipment Module From the IEM grid, select the check boxes next to up to ten Midmark Spirometry reports. The Spirometry Trend window opens. Select Pre-Bronchodilator Tests or Post-Bronchodilator Tests and select OK. The Spirometry Trends window opens. Select the following buttons to perform appropriate actions, as needed: Save To File: Saves the report as a Microsoft Excel file. Print: Prints the report. Printer Setup: Enables you to change the printer settings. Select Report: Returns to the IEM Equipment Reports window. Select Items To Trend: Enables you to select trend settings for display or printing. View F/V Loops: Displays the Flow/Volume loops using the default screen format or the last screen format used. View Patient Info: Displays the Patient Information window.

NextGen® Enterprise EHR Help

View Midmark Stress ECG Reports

After recording a Midmark Stress ECG report, you can view it. The report contains several sections: Summary Table, Average Beat, Trends, and Rhythm Strips. For more information on how to use Midmark Stress ECG functionalities, refer to the appropriate Midmark operation manual. Open the Integrated Equipment Module From the IEM grid, select View Report in a row that contains a Midmark Stress ECG report. The Report Review window opens. Enter or change the following information as needed: Technician: Displays the name of the user logged on to NextGen® Enterprise EHR. Supervising Physician: Displays the name of the physician that supervised the test. Reviewed By: When you select the Sign check box, the application displays the name of the provider selected in the IEM. Review Date: When you select the Sign check box, the application displays the date the report was reviewed. Select the following buttons to perform appropriate actions, as needed: Test Data: Displays the Reasons for Terminatio

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap

NextGen® Enterprise EHR Help

Create GE Spirometry Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft functionality, refer to the GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Spirometry. The GE CardioSoft application starts and displays the Test Information window. Before the test starts: Configure and select the appropriate settings as needed. Explain the test procedure to the patient. On the Test Information window: For each tab, enter or select all relevant information and select OK. If you are performing a Flow-Volume measurement: Select the Start Test button. If prompted, select OK to confirm that the patient is not yet breathing through the sensor. Have the patient exhale and inhale as directed. Select the Stop Test button. Repeat the test as needed. Select Best

NextGen® Enterprise EHR Help

View Midmark Holter Reports

You can view Midmark Holter, full disclosure, and summary reports and edit full disclosure reports. Reports are displayed in the Report Review window. Note: Some Midmark Holter functions require the use of a security key. For more information on how to use Midmark Holter functionalities, refer to the appropriate Midmark operation manual. Open the Integrated Equipment Module From the IEM grid, select View Report in a row that contains a Midmark Holter report. The Holter Monitor Options window opens. From the Holter Monitor Options window, you can: View and edit the Full Disclosure report (requires a security key). View the Summary report (no security key required). Select Re-Analyze to repeat the Holter scan on the original ECG recording (requires a security key and does not require the original CompactFlash card). Select Delete Full Disclosure Report to delete the Full Disclosure report and convert it to a Summary report (does not require a security key). Select Exit to close the Holte
