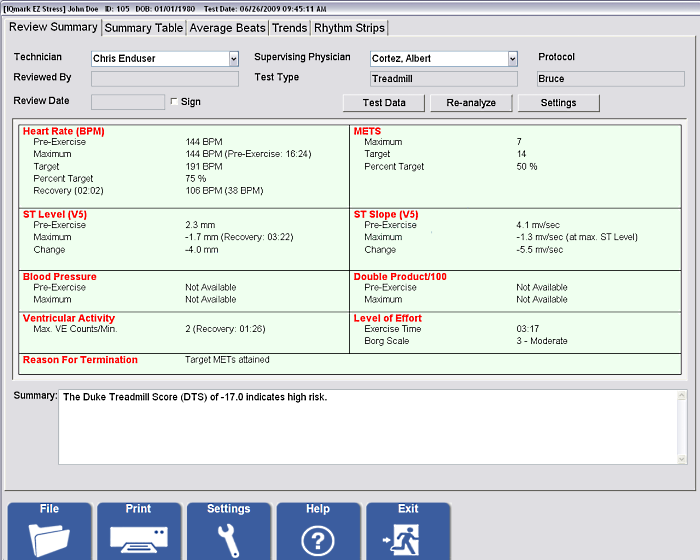

View Midmark Stress ECG Reports

NextGen® Enterprise EHR Help

Compare Midmark Stress ECG Reports

You can compare up to four Midmark ECGs from the same patient. For more information on how to use Midmark Stress ECG functionalities, refer to the appropriate Midmark operation manual. Open the Integrated Equipment Module Select the check boxes next to up to four Midmark Stress ECG reports in the IEM grid. Select Compare. The Stress Test Serial Comparison Report window opens. Select the following buttons to perform appropriate actions, as needed: Preview: Displays a print preview of the report. Print: Prints the report. Printer Setup: Enables you to change the printer settings. Help: Displays online help. Select Exit to close the report and return to the IEM. Parent topic: Midmark Stress ECGs

NextGen® Enterprise EHR Help

Create Midmark Stress ECG Reports

Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark Stress ECG. The Pre-Test Settings window opens. On the Pre-Test Settings window: If needed, select Settings to change system configurations and to manage user profiles. Select an Exercise Profile from the list and select Next. Note: If you had selected a ramp protocol, the Patient Activity Questionnaire window appears. Enter the patient’s level of physical activity and select Next. The Hookup window opens. Prepare the patient for the test by connecting the electrodes and verifying the ECG tracing quality. On the Hookup window: When you are satisfied with the ECG tracing quality, select Stage Up (F4) to allow the software to learn the ECG, which requires approximately 30 seconds. Once complete, the program au

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap

NextGen® Enterprise EHR Help

Compare Midmark ECG Reports

You can compare two Midmark ECGs from the same patient. Open the Integrated Equipment Module Select two Midmark ECG reports from the IEM grid and then select Compare. The ECG window opens with the COMPARE tab selected. The COMPARE tab shows two reports at a time, one above the other. To select a different report for the lower pane, use the data/time list on the right side of the lower pane. If the System Administrator View > Universal Preferences > Equipment > Permit Midmark access to Sensitive Encounter reports option is not True, then sensitive encounters are excluded from the list of available reports. To close the report and return to the IEM, select the (Close) icon at the upper right of the window. For more information on Midmark ECG functionalities, refer to the appropriate Midmark operation manual. Parent topic: Midmark ECGs

NextGen® Enterprise EHR Help

Create GE Stress ECG Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft, refer to the appropriate GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Stress ECG. The GE CardioSoft application starts and displays the Test Information window. On the Test Information window: For each tab, enter or verify all relevant information and select OK. Before the test starts: Check the applied electrodes and verify the signal quality in all leads. If needed, configure and select appropriate settings and protocols. Select the F1: pretest button to start the Pretest phase. In the Pretest phase: Select the 12SL analysis button to acquire and analyze a baseline ECG. Select the F1: pretest button to advance to the next stage in the selected protocol. After the la

NextGen® Enterprise EHR Help

View Midmark Spirometer Reports

After recording a Midmark spirometry test, you can view the report. For more information on how to use Midmark Spirometry functionalities, refer to the appropriate Midmark spirometry operation manual. Open the Integrated Equipment Module From the IEM grid, select View Report in a row containing a Midmark Spirometer report. The Spirometry Report window opens. Select the Summary, FVC Graphs, MVV Graphs, or VC Graphs tab to view additional data for this patient. Enter or change the following information as needed: Technician: Displays the name of the user logged on to NextGen® Enterprise EHR. Reviewed By: Select the name of the reviewing provider. Bronchodilator: Select the type of bronchodilator. Select the following buttons to perform appropriate actions, as needed: File: Archives the report as a PDF, JPEG, or CAR file or e-mails the report. Print: Prints the report. Settings: Enables you to change display, printer, and configuration settings. Help: Displays online help. Select Exit to
