Create New Midmark Spirometry Tests

NextGen® Enterprise EHR Help

Compare Midmark Spirometry Reports

You can compare up to ten Midmark Spirometry reports from the same patient. For more information on how to use Midmark functionalities, refer to the appropriate Midmark spirometry operation manual. Open the Integrated Equipment Module From the IEM grid, select the check boxes next to up to ten Midmark Spirometry reports. The Spirometry Trend window opens. Select Pre-Bronchodilator Tests or Post-Bronchodilator Tests and select OK. The Spirometry Trends window opens. Select the following buttons to perform appropriate actions, as needed: Save To File: Saves the report as a Microsoft Excel file. Print: Prints the report. Printer Setup: Enables you to change the printer settings. Select Report: Returns to the IEM Equipment Reports window. Select Items To Trend: Enables you to select trend settings for display or printing. View F/V Loops: Displays the Flow/Volume loops using the default screen format or the last screen format used. View Patient Info: Displays the Patient Information window.

NextGen® Enterprise EHR Help

View Midmark Spirometer Reports

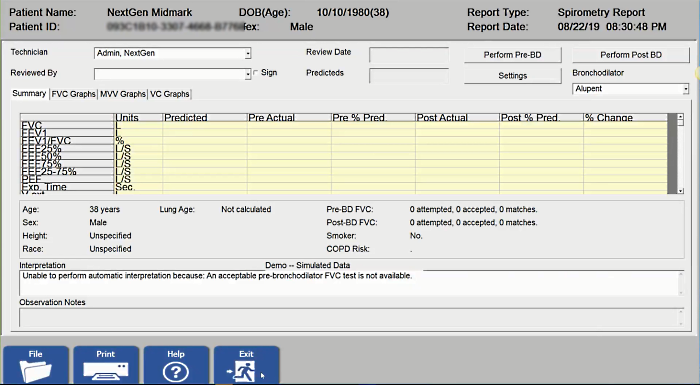

After recording a Midmark spirometry test, you can view the report. For more information on how to use Midmark Spirometry functionalities, refer to the appropriate Midmark spirometry operation manual. Open the Integrated Equipment Module From the IEM grid, select View Report in a row containing a Midmark Spirometer report. The Spirometry Report window opens. Select the Summary, FVC Graphs, MVV Graphs, or VC Graphs tab to view additional data for this patient. Enter or change the following information as needed: Technician: Displays the name of the user logged on to NextGen® Enterprise EHR. Reviewed By: Select the name of the reviewing provider. Bronchodilator: Select the type of bronchodilator. Select the following buttons to perform appropriate actions, as needed: File: Archives the report as a PDF, JPEG, or CAR file or e-mails the report. Print: Prints the report. Settings: Enables you to change display, printer, and configuration settings. Help: Displays online help. Select Exit to

NextGen® Enterprise EHR Help

Attach Pre and Post-BD Tests

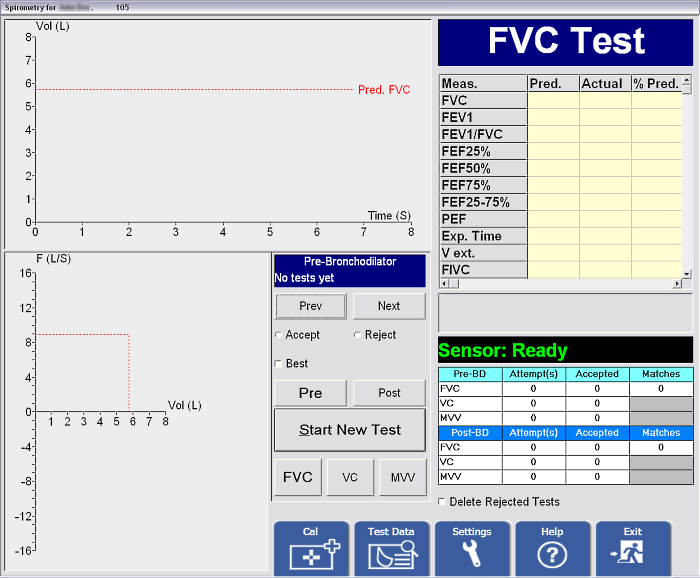

You can attach a Pre-Bronchodilator (Pre-BD) or Post-Bronchodilator (Post-BD) to an existing IQmark Spirometry test. Open the Integrated Equipment Module. Select an existing Midmark Spirometer record and select Acquire Data. The spirometry report window opens. Select either the Perform Pre-BD or Perform Post BD. The Spirometry Test window opens. On the Spirometry Test window: Select Settings to adjust any Spirometry options. Select either Pre (Bronchodilator) or Post (Bronchodilator) and select the test type ( FVC, VC, or MVW) . Select Start New Test. The system zeroes the sensor and displays an Incentive graphic Direct the patient to begin the Spirometry test. After the numbers have stopped rising, instruct the patient to inhale maximally, select Stop or select the Enter key to complete the test. After each completed test, the Spirometry Guidelines window opens. Select Yes or No option to accept or not accept the test. Select Yes to perform another test or No to stop testing. After th

NextGen® Enterprise EHR Help

Create GE Spirometry Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft functionality, refer to the GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Spirometry. The GE CardioSoft application starts and displays the Test Information window. Before the test starts: Configure and select the appropriate settings as needed. Explain the test procedure to the patient. On the Test Information window: For each tab, enter or select all relevant information and select OK. If you are performing a Flow-Volume measurement: Select the Start Test button. If prompted, select OK to confirm that the patient is not yet breathing through the sensor. Have the patient exhale and inhale as directed. Select the Stop Test button. Repeat the test as needed. Select Best

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap

NextGen® Enterprise EHR Help

View Midmark Stress ECG Reports

After recording a Midmark Stress ECG report, you can view it. The report contains several sections: Summary Table, Average Beat, Trends, and Rhythm Strips. For more information on how to use Midmark Stress ECG functionalities, refer to the appropriate Midmark operation manual. Open the Integrated Equipment Module From the IEM grid, select View Report in a row that contains a Midmark Stress ECG report. The Report Review window opens. Enter or change the following information as needed: Technician: Displays the name of the user logged on to NextGen® Enterprise EHR. Supervising Physician: Displays the name of the physician that supervised the test. Reviewed By: When you select the Sign check box, the application displays the name of the provider selected in the IEM. Review Date: When you select the Sign check box, the application displays the date the report was reviewed. Select the following buttons to perform appropriate actions, as needed: Test Data: Displays the Reasons for Terminatio
