For documents displayed in the TX Text viewer, NextGen® Enterprise EHR checks for the following invalid margin conditions:
- Negative value
- Viewable document area less than one inch
- Outside-the-margin limits supported by the selected printer
Margins are not checked on documents printed to Portable Document Format (PDF) or Extended Markup Language (XML) Paper Specification (XPS) format.
Note: Invalid margins may occur on HighEdit documents that are saved as RTF files.

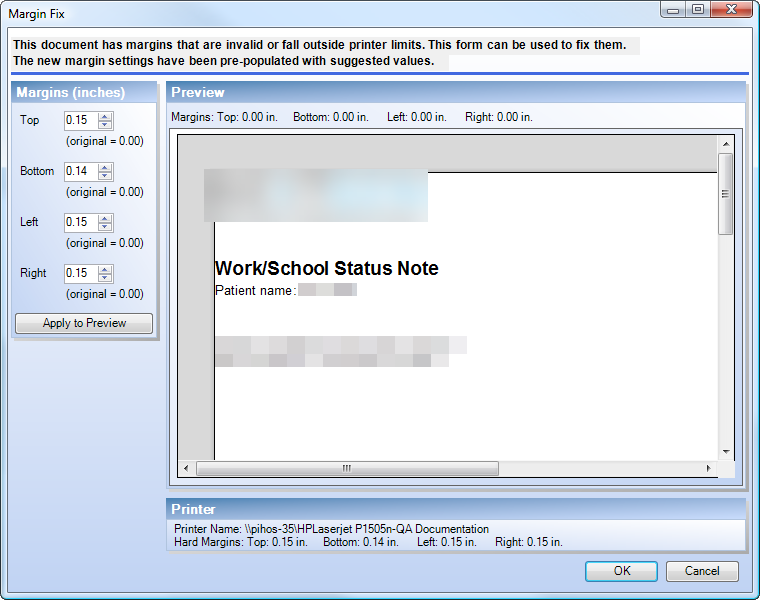

If any invalid conditions exist, the
Margin Fix window opens. The
Preview pane shows the current margin values and document appearance with those margins. The
Margins pane displays suggested and original margin values. The
Printer pane displays the minimum hard margins supported by the printer.
