Display Existing Descriptions
Open
NextGen® Enterprise EHR
.
Select a patient.
Select an existing encounter or create an encounter.
Open the template that contains the Graphical Exam Tool (GET) component.
The GET component window opens and displays the predefined profile settings.

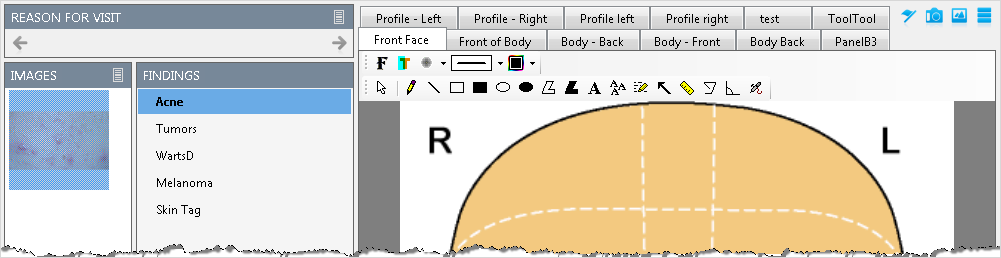

Select an image and finding, and then annotate the GET image.
Scroll to the bottom of the GET component and expand the
Reason to visit
section.
Select any row in the
Reason for Visit
section.
The image and new image description appear in the
pane.
On the main toolbar, select
Save
.
NextGen® Enterprise EHR Help
Update Existing Descriptions
The Graphical Exam Tool (GET) allows you to update existing descriptions of patient images with the finding name and region description when they get attached to findings. The image description for each finding is unique. The finding with the same name and region is updated as Finding Name - Region Description(x) , where x increases the image description starting from 2. Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter. On the Encounter History or Categories tab, select any image. The image opens. On the main toolbar, select Save. The Save Image File window opens. Enter the Image Description, select the Save image as, and select OK. The image is saved to the patients chart. Open the template that contains the GET component. The GET component window opens. A new Images pane appears on the left side of the tool and enables you to associate images and findings more easily into the workflow. Note: The GET stacks the image tabs instead of d
NextGen® Enterprise EHR Help
Integrate a Document Macro to Filter Finding Images
Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter and open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. In the REASON FOR VISIT pane, select the Menu icon, and then select Manage Reasons for Visit. The Reasons for Visit window opens. From the list at the bottom of the window, select the reason and select Add. From the IMAGES panes, select the Images check box, select FINDINGS and annotate the GET image. A new row is added in the Findings Data Grid with the findings details. An icon appears in the Findings Data Grid row denoting that multiple images are attached to the finding. On the NextGen® Enterprise EHR toolbar, select Save. All the images saved to the patient's chart are renamed to the image description that is Finding Name-Region Description( x. x). From the Categories tab, open the document that contains the GET images and select Generate. The generated document displays the
NextGen® Enterprise EHR Help
Annotate an Image
Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter from the Encounter History or create an encounter. Open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. The findings and exam tools are displayed for the selected location and provider in GET component. Note: The GET template can be opened in NextGen® Enterprise EHR without selecting the Reason for Visit. From the REASON FOR VISIT pane, select the reason for visit that you want to attach the finding. To change profile settings, select Settings from the Options and Settings Popup Menu . The Graphical Exam Tool - Settings window opens. Note: To edit profile settings, you must have the Operations Right for Administration > Edit EHR Component Profiles enabled in the System Administrator. Select the tab that contains the image you want to annotate first. The tab for the first image appears by default. Adjust the view or manipulate the image using the image toolbar
NextGen® Enterprise EHR Help
Graphical Exam Tool Annotations
The Graphical Exam Tool (GET) enables you to: Place annotations on images to document the location of findings. The placement of the annotations is converted into text and captured as an attribute of the finding. The attributes are saved to the patient's chart. For example, a dermatologist can place findings for cancer on an image. The attributes related to each finding can include size, color, location, or description. Attach a finding to a chief complaint or reason for visit. You can attach multiple findings to different reasons for visit. Mark a finding for follow-up and create a to-do task for the finding. Attach an image (photo or drawing) to a finding. The image can be from the provider's file system or from the patient's chart for the current encounter. You can capture an image from a web cam or other video device for attachment to the finding. Create and update a lab, radiology, or immunizations order for a finding. Then view test results when they are available. Execute a pred
NextGen® Enterprise EHR Help
Associate Multiple Images from the Findings Data Grid
Open NextGen® Enterprise EHR. Select a patient. Select an existing encounter or create an encounter. Open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. Select FINDINGS and annotate the GET image. A new row is added in the Findings Data Grid with the findings details. Right-click the findings in the Findings Data Grid, and select Attach Image. The Select Image window opens. Select the image and select Open. The image is added to the Photo section with the following format: Finding Name-Region Description( x. x). You can add multiple images to the Photo section. In the Photo section, you can perform the following: Select the Original icon to view and zoom the image. Select the Manage Images icon to move images up, down, and delete. Select the Close icon to close the image. On the NextGen® Enterprise EHR toolbar, select Save. All the images saved to the patient's chart are renamed to the Image Description that is Finding Name-Region De
NextGen® Enterprise EHR Help
Associate Multiple Images from the Images Pane
Open NextGen® Enterprise EHR Select a patient. Select an existing encounter or create an encounter. On the Top Toolbar, select the Images module and add images to the patients chart. Open the template that contains the Graphical Exam Tool (GET) component. The GET component window opens. Select the Options and Settings Popup Menu icon and then select Show Findings Images. From the IMAGE pane, select the Images check box, select FINDINGS and annotate the GET image. The selected images no longer appear on the IMAGES pane. A new row is added in the Findings Data Grid with the findings details. An icon appears in the Findings Data Grid row denoting that multiple images are attached to the finding. The Photo section of the GET component appears. The image is added to the Photo section with the following format: Finding Name-Region Description( x. x). Right-click the findings in the Findings Data Grid, and select the Manage Images icon. The window appears with the image description and all th
