Create a Document Macro in the Document Builder
From the
NextGen® Enterprise EHR
Menu
bar, select
Tools
and select
Document Builder
.
The
Document Builder TX Text Logon
window opens.
Go to Document Builder TX Text.
The
NextGen Document Builder TX Text
main window opens.
From the
File
menu, select
New
and select
Blank Document
.
The Blank Document opens.
On the
Menu
bar, select
Tools
and select
Macro Builder
.
The
Macro Builder
window opens.
Select the
Create New Macro
icon, select
Summary Macro
>
Graphical Exam
>
Graph Exam Images
.

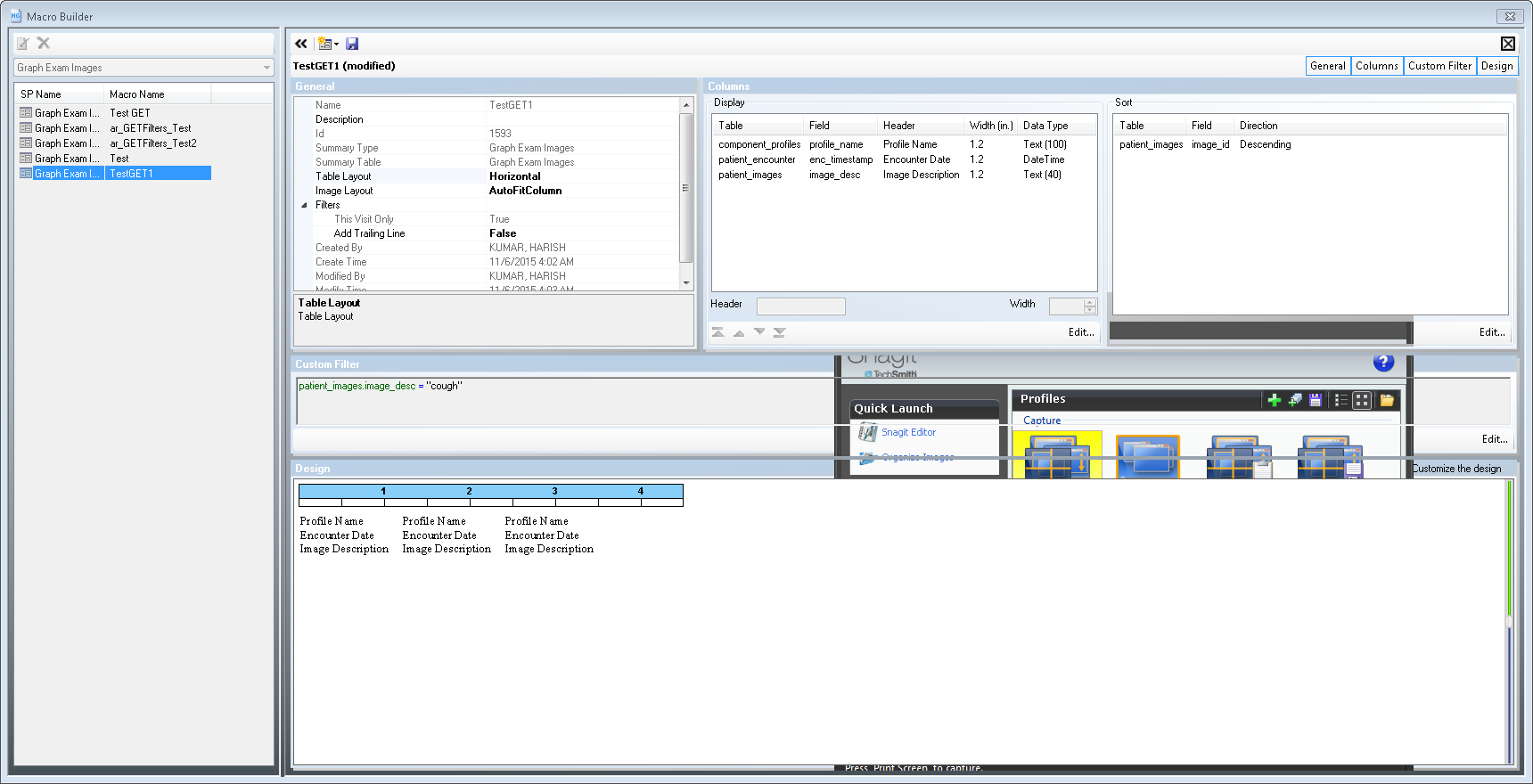

The macro creating or editing window opens.
In the
General
section, select the following:
Enter the
Macro
name.
Select
Horizontal
from the
Table Layout
list.
Select
AutoFitColumn
from the
Image Layout
list.
In the
Columns
and
Sort
section, select
Edit
.
The
Macro Column Select
window opens.
Select the summary columns that you would like to use in your summary macro.
Select
Done
.
In the
Custom Filter
section, select
Edit
.
The
Custom Filter Editor
window opens.
Double-click the summary fields and set the conditions.
Select
OK
.
Select the
Save
icon on the
Macro Builder
window.
In the left pane, select
Graph Exam Images
and add the Macros.
On the
Menu
bar, select
Tools
and then select
Compile
.
The document macro compiles.
Select
Save
.
