Add Patient Pre-Printed Barcodes to Existing Form Templates

NextGen® Document Management User Guide,

Create Barcode Separator Sheets

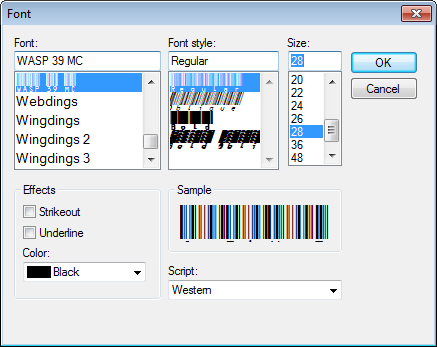

Before you begin Make sure that the document type you want to display in barcode form on the separator sheet includes Medical Record Number, Person Number, and Encounter Number fields, and these fields are configured for auto search. Create a form template that includes data fields that display with a barcode font. To create barcode form templates, refer to Print Barcode Form Templates You can include the patient and document type on one sheet or have them on separate sheets. NextGen® Document Management supports the following patient barcode data fields on separator sheets: Patient Medical Record # (for example, NGMRN:000000001234) Person Number (for example, NGPN:1234) Encounter Number (for example, NGEN:1234) Open File Maintenance. In Master Files, select System, and then select Form Templates. In Form Templates List, select the open menu button, and then select New. The Form Design window opens. On the toolbar, select Insert Data Field. The NextGen Data Repository window opens. Nex

NextGen® Document Management User Guide,

Print Barcode Form Templates

Open NextGen® Enterprise PM. Open a patient chart, and then select the Encounters tab. Right-click an encounter, and then select Print > Forms. The Print Forms window opens. In Template, select the form template that you have set up as a separator sheet. In Master File, select Document Types. Select the document type master file you want to associate with the System Master File Text data field on the form template. When you scan the separator sheet with barcodes, the File menu in NextGen® Document Management displays the selected document type and the fields associated with it. Note: The document type that you assign when printing the form template must have an MRN field that is set for automatic search. Select Print. Note: To use the barcode engine, activate it in the User Preferences window and then use the Scan & File feature. Parent topic: Configure NextGen Document Management Related tasks Turn on Barcode Recognition for Barcode Separator Sheets

NextGen® Document Management User Guide,

Assign Barcodes to Document Types

You can assign specific barcodes to different document types. When you scan a document with a barcode, NextGen® Document Management automatically assigns a document type to the image according to the cross-reference configuration that is set up in the Document Types master file. NextGen® Document Management can also file the document to the correct patient if the document uses one of the patient barcodes supported for pre-printed barcodes. Note: The barcode that displays on the image does not require a separator sheet. The patient pre-printed barcodes require NGA prefix followed by the type of the barcodes and the actual value. You can map the existing barcodes to NextGen® Document Management document types. You can also print the patient barcodes on labels and add them on the documents. After barcodes are scanned, pages with the pre-printed barcodes are imported to NextGen® Document Management. Open File Maintenance. In Master Files, select System > Document Management, and then selec

NextGen® Document Management User Guide,

Turn on Barcode Recognition for Barcode Separator Sheets

Before you begin Create and print the separator sheets by setting up form templates that include data fields configured to display document type in a barcode font. You can set up NextGen® Document Management to read barcodes printed on separator sheets that are inserted into documents. The barcodes can correspond to document types or patients. After the barcodes are scanned, the separator sheets are not imported to NextGen® Document Management. When NextGen® Document Management scans the barcode, it automatically inserts the barcode value into the correct document type field for filing. Note: You must apply a NextGen® Document Management Barcode Engine User License to each user you want to perform barcode scanning in NextGen® Document Management. For instructions on applying NextGen licenses, go to NextGen Healthcare Success Community and download the System Administration Guide for NextGen® Enterprise and File Maintenance Guides for NextGen® Enterprise. Note: The pre-printed and separ

NextGen® Document Management User Guide,

Scanning Support for Pre-Printed Barcodes

NextGen® Document Management supports scanning of existing barcodes on the document, which you can map to NextGen® Document Management document types. Barcodes Prefix Example Medical record number NGAMRN: NGAMRN:000000001234 NextGen person number NGAPN: NGAPN:1234 Encounter number NGAEN: NGAEN:1234 Custom document type barcodes that can be mapped to NextGen® Document Management document types. Parent topic: Add Patient Pre-Printed Barcodes to Existing Form Templates Related tasks Assign Barcodes to Document Types

File Maintenance Help for NextGen® Enterprise 8

Add a Patient's Picture to a Form or Label

The application enables you to add a patient's picture to a form or label through Form Templates and Label Templates. After you add the picture to the template, you can print the forms and labels with the picture in NextGen® Enterprise PM. Open File Maintenance. Select System Master Files, then PM, and then either Forms or Label template. The Forms List or Label Templates List window opens. Select the template to which you want to add the picture. Select Open Menu , then select Open. If you want to create a new template, see Creating Forms or Creating Label Templates. The Form Design or Label Design window opens. Select Insert Data Field on the form/label toolbar. The NextGen Data Repository window opens. Double-click Patient Information. A list of patient information fields displays beneath it. Select the Patient Picture data field and drag the item from the list and drop it on the template in the location where you want the picture to print. The data field is inserted in the template
