View Job Schedules of a Package in Gantt Chart

The Package List tab on the NextGen® Background Business Processor main window lets you view a list of current packages in NextGen® Background Business Processor and each package is a set of job schedules that are scheduled to run at different times for different purpose.

The Package List tab sorts and displays the packages in an order based on the following column items:

  • the practice name of the package
  • package name
  • package is enabled/disabled
  • package is running
  • last run time of the package
  • result of the last run package
  • next scheduled date and time to run the package

You can review the full schedule of a package on a selected server at once through a Gantt chart. It displays each job schedule in a consecutive order with its run times based on a historical run date within the job chart window. You can view any historical date from the time the NextGen® Background Business Processor was installed on the local machine or server.

  1. Highlight the package in the Package List.
  2. Right-click and select Job Chart from the short-cut menu.

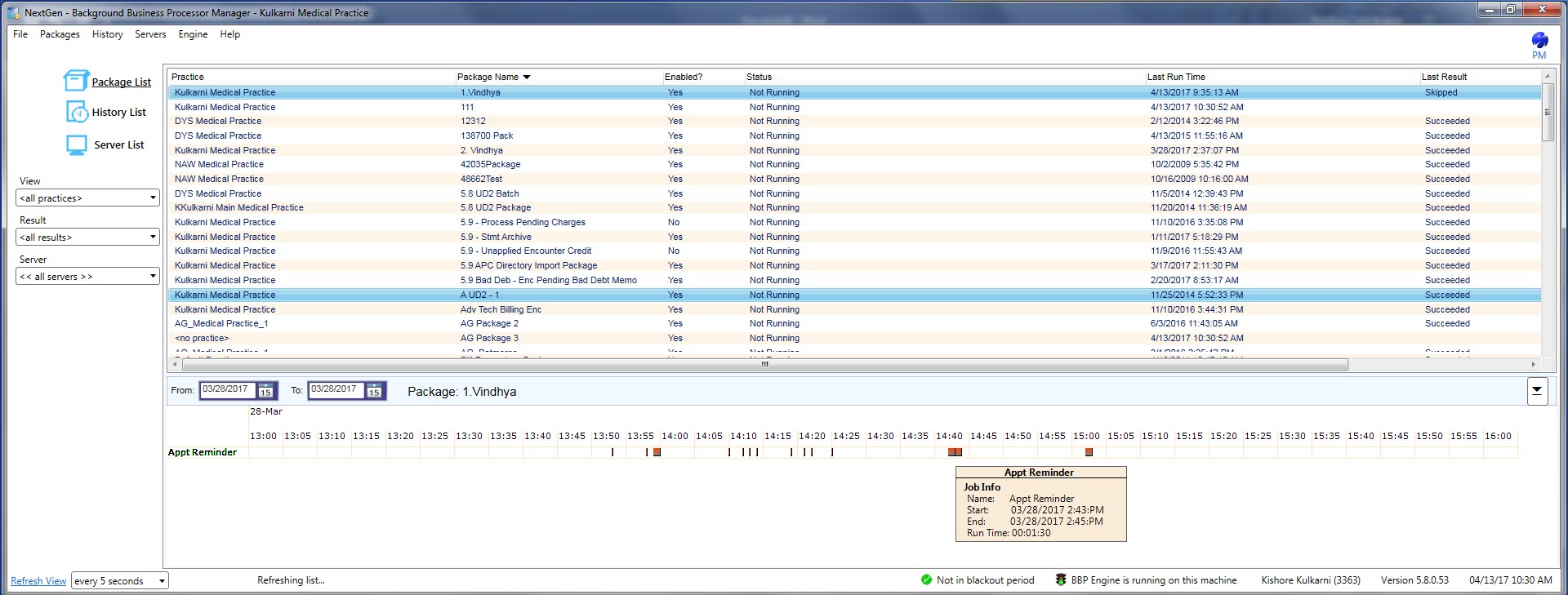

    The Job Chart Schedule window displays with a Gantt chart.

  3. Hover your mouse on a schedule to view the job information such as:
    • the name of the job
    • the job’s start date and time
    • the job’s end date and time
    • the total run time of the job

    For more information about defining schedules, go to NextGen Healthcare Success Community and download the latest Reports User Guide for NextGen® Enterprise PM.
