View Metrics Flowsheet

NextGen® Adaptive Content Engine Help Enterprise 8

Metrics

You can view the metrics for a patient and can configure on the Flowsheets Setup template. If metrics is configured for the guideline, they appear on the Metrics panel when the guideline is selected. By default, the categories Lab Test and Vital Signs are configured to display relevant items in the grid for tracking, based on the condition. View Metrics Flowsheet You can view the flowsheet for metrics that are activated for the patient using Metrics panel. Parent topic: Care Guidelines Grid View

NextGen® Adaptive Content Engine Help Enterprise 8

View Metrics Flowsheets on the Care Guidelines Template

Providers can view metrics for a patient such as lab and vital signs values, for up to 10 rows of data on the Care Guidelines template in the Metrics panel. Data is displayed in a flowsheet format that can be configured by practice or by provider on the Flowsheets Setup practice template. The Metrics grid is view-only and displays results from the Orders module. The Metrics grid also displays vital signs and vision screening. Metrics flowsheets are displayed on the Metrics panel when you select a condition listed in the blue left side pane of the Care Guidelines template. The conditions listed are those for which clinical guidelines have been activated for the patient. When you first open the Care Guidelines template and expand the Metrics panel, it appears blank. Flow sheets do not appear until you select a guideline listed in the blue left side bar under Outstanding Guidelines. Note: A guideline must have metrics configured in order to have flowsheets display. Choices of categories f

NextGen® Adaptive Content Engine Help Enterprise 8

Access Metrics on Care Guidelines

Click the Care Guidelines link on any template to access the Care Guidelines template. On the Care Guidelines template, click a disease or condition guideline listed in the blue left side bar under Outstanding Guidelines. If metrics are configured for the guideline, they appear on the Metrics panel in flowsheet format when the guideline is selected. Lab tests and Vital Signs categories have items relevant to the condition already configured to appear in the grid for tracking by default. Note: The Metrics panel appears blank until you select one of the patient's conditions. For more information about the Metrics panel and Care Guidelines, go to NextGen Healthcare Success Community and download the latest Care Guidelines User Guide for NextGen® Adaptive Content Engine . Parent topic: View Metrics Flowsheets on the Care Guidelines Template

NextGen® Adaptive Content Engine Help Enterprise 8

Configure Flowsheets for Metrics

You can configure the existing flowsheet for the metrics using Flowsheets Setup template. Open NextGen® Enterprise EHR. Open the Flowsheets Setup template. Flowsheetss Setup In the Condition field, select a condition guideline, and then select OK. The default flowsheet setup at the practice level for the guideline displays in the Metrics Flowsheet Items grid. In the Provider field, select a provider, and then select OK, if appropriate. Note: Selecting a provider creates this flowsheet setup at the provider level only. To add a metric to the flowsheet: Select the field above the Category column and then select an option. Select the field above the Item Name column and select an option. Select Add. The new metric appears in the grid. Select Yes to save changes and close the template. Note: To remove a metric from the flowsheet, you can select the appropriate row in the Metrics Flowsheet Items grid, and select Remove. Parent topic: Metrics Related tasks Open the Flowsheets Setup Practice

NextGen® Adaptive Content Engine Help Enterprise 8

Open the Flowsheets Setup Practice Template

You can create a flowsheet setup or configure the existing flowsheet. Open NextGen® Enterprise EHR. From the File menu, select System \ Practice Template. In the Select Template window, select the Practice tab. In the Show section, select All. To access the Flowsheets Setup practice template, do one of the following: Double-click Flowsheets Setup. Select Flowsheets Setup, and then select OK. Select Template The Flowsheets Setup practice template opens. Flowsheets Setup Parent topic: Metrics Parent topic: Setup Flowsheets for Metrics Panel in Care Guidelines

NextGen® Adaptive Content Engine Help Enterprise 8

Metrics

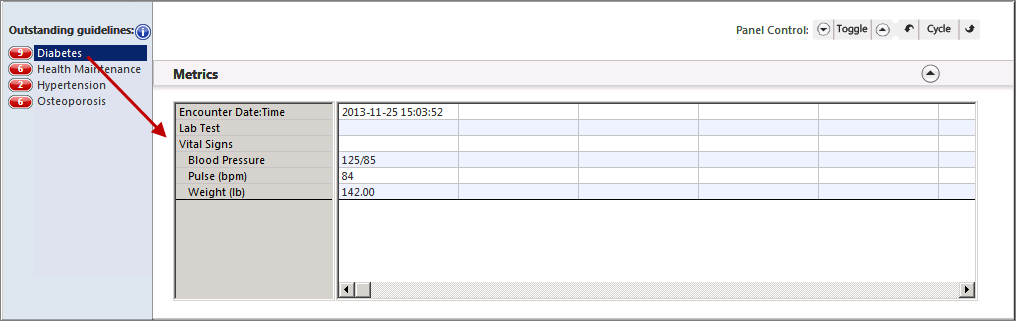

You can view the metrics for a patient and can be configured using the Flowsheets Setup template. In the Metrics panel you can view metrics for a patient, lab and vital signs values, for up to 10 rows of data. Data appears in a flowsheet format, you can be configure it on the Flowsheets Setup practice template. The Metrics data grid is view-only. Metrics When you first open the Care Guidelines grid view template and expand the Metrics panel, it appears blank. Flowsheets do not appear until you select a guideline listed in the left pane in Outstanding Guidelines. Note: A guideline should have metrics configured in order to display flowsheets. Flowsheets in the Metrics panel are configured on the Flowsheets Setup practice template. Default flowsheet is setup at the practice level and comes shipped with the system, and can be edited or added. You can also setup the flowsheets. Open the Flowsheets Setup Practice Template You can create a flowsheet setup or configure the existing flowsheet.
