Track Diabetic Data Over Time

NextGen® Adaptive Content Engine Help Enterprise 8

Flowsheets

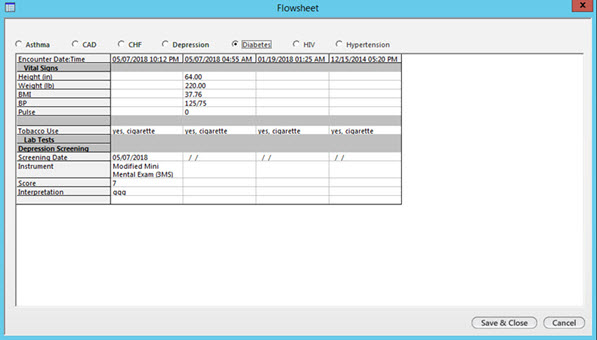

Flowsheets are used for comparison of various items over time, such as vital signs and labs. Practices can configure flowsheets as needed. For more information on configuring flowsheets, go to NextGen Healthcare Success Community and download the latest version of Care Guidelines User Guide for NextGen® Adaptive Content Engine and Flowsheets Setup Practice Template for NextGen® Adaptive Content Engine. Track Diabetic Data Over Time Parent topic: Access the Chronic Conditions Template

NextGen® Adaptive Content Engine Help Enterprise 8

Access Metrics on Care Guidelines

Click the Care Guidelines link on any template to access the Care Guidelines template. On the Care Guidelines template, click a disease or condition guideline listed in the blue left side bar under Outstanding Guidelines. If metrics are configured for the guideline, they appear on the Metrics panel in flowsheet format when the guideline is selected. Lab tests and Vital Signs categories have items relevant to the condition already configured to appear in the grid for tracking by default. Note: The Metrics panel appears blank until you select one of the patient's conditions. For more information about the Metrics panel and Care Guidelines, go to NextGen Healthcare Success Community and download the latest Care Guidelines User Guide for NextGen® Adaptive Content Engine . Parent topic: View Metrics Flowsheets on the Care Guidelines Template

NextGen® Adaptive Content Engine Help Enterprise 8

View Metrics Flowsheets on the Care Guidelines Template

Providers can view metrics for a patient such as lab and vital signs values, for up to 10 rows of data on the Care Guidelines template in the Metrics panel. Data is displayed in a flowsheet format that can be configured by practice or by provider on the Flowsheets Setup practice template. The Metrics grid is view-only and displays results from the Orders module. The Metrics grid also displays vital signs and vision screening. Metrics flowsheets are displayed on the Metrics panel when you select a condition listed in the blue left side pane of the Care Guidelines template. The conditions listed are those for which clinical guidelines have been activated for the patient. When you first open the Care Guidelines template and expand the Metrics panel, it appears blank. Flow sheets do not appear until you select a guideline listed in the blue left side bar under Outstanding Guidelines. Note: A guideline must have metrics configured in order to have flowsheets display. Choices of categories f

NextGen® Adaptive Content Engine Help Enterprise 8

Activate Diabetes Care Guidelines

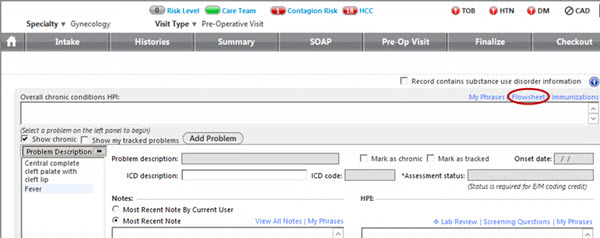

Care guidelines can be set up for diabetes. The guidelines include tests, as well as recommended care items, and are a form of clinical decision support. Practices can customize care guidelines on the Activate Care Guidelines template. For more information on configuring care guidelines, go to NextGen Healthcare Success Community and download the latest Care Guidelines User Guide for NextGen® Adaptive Content Engine. On the Chronic Conditions – Hpi template, navigate to the Care Guidelines section and click Update. The Activate Care Guidelines template opens. Click Add/Updatein the Care Guidelines to add new guidelines or edit existing ones. Selecting the Diabetes navigational link in the Care Guidelines template displays the configured diabetic guidelines. Click OK to return to the Chronic Conditions - Hpi template. Once the clinical or care guidelines are configured, they can be viewed and updated on the Chronic Conditions – Hpi template. Parent topic: Access the Chronic Conditions -

NextGen® Enterprise EHR Help

Growth Chart Generation from NextGen® Adaptive Content Engine

NextGen® Enterprise EHR enables you to record a pediatric patient's body measurements and graph growth charts from them using NextGen® Adaptive Content Engine pediatric templates. The growth chart uses template data from all of the patient's encounters. You can generate a selected type of growth chart from the Record Vital Signs template or a set of up to four growth charts at a time from the Pediatric Vital Signs template. The growth chart graphs are based on the type and age of the patient and the measurements provided. You can also generate growth charts from a NextGen® Adaptive Content Engine template by using File menu commands in NextGen® Enterprise EHR. You can graph BMI, height, weight, head circumference, and weight versus length. For more information on using NextGen® Adaptive Content Engine for pediatric patients, go to NextGen Healthcare Success Community, and download the Pediatrics User Guide for NextGen® Adaptive Content Engine. Growth Chart Measurements Parent topic: Vi
