Record the Pre-Procedure Vital Signs of the Patient

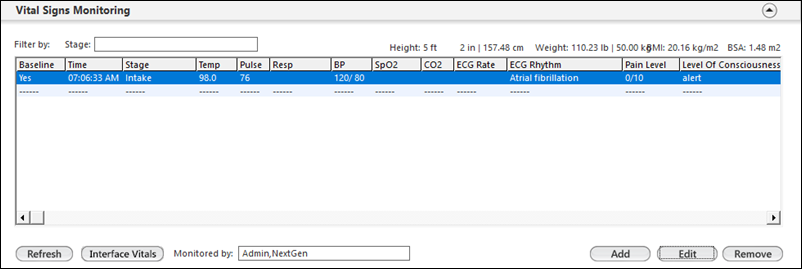

The baseline vitals display at the top row of the grid throughout the workflow.

The Height, Weight, BMI, and BSA above the grid displays the height, weight, and the calculated BMI and BSA values from the Vital Sign Monitoring template.

The values associated with the Height, Weight, BMI and BSA labels above the grid dynamically update as you modify or add height and weight data on the Vital Sign Monitoring template.

The grid filters data in the grid based on the selected procedure stage.

On the Practice Configuration practice template, if you select the Show Interface Vitals check box in the Vital Signs section, then the Interface Vitals button and Monitored by field appear in the Vital Signs Monitoring panel. The Interface Vitals button opens the Vital Signs Monitor interface to capture patient's vitals from the vital signs device. The Monitored by field displays the current user name logged on to the system to monitor the patient's vitals through the Vital Signs Interface.
