Open Diagnostic Details Builder
From the
File
menu, select
System \ Practice Template
.
The
Select Template
window opens.
From the
Show
section, select
All
.
Select
Custom DB Picklists
, and then select
OK
.
The
Custom DB Picklists
template opens.
Select
OB Diagnostics Results
from the list, and then select
Configure
.
The

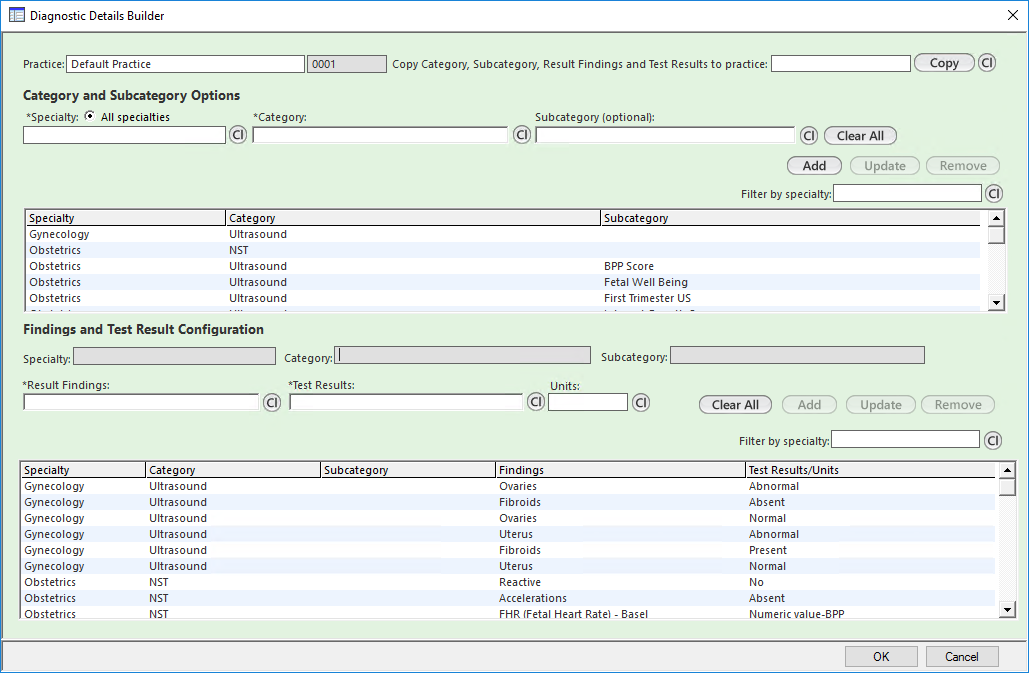

Diagnostic Details Builder
window opens.
Related tasks
Update Diagnostic Categories
Open Diagnostic Details Builder
NextGen® Adaptive Content Engine Help Enterprise 8
Create and Configure Obstetrics Diagnostic Details
You can preconfigure the diagnostic study categories, subcategories, result findings, test results, and test units that appear in the Diagnostic Details template in Obstetrics Prenatal Detail. Open the Diagnostic Details Builder template. Note: The default practice is automatically selected. The preconfigured specialty, category, subcategory, findings, and test results for the practice appear in the grid. In the Category and Subcategory Options section, select a specialty from the list or the All specialties option. Note: To clear the values in a particular field, select Cl. To clear all the fields in a section, select Clear All. To add diagnostic groups, select a category. Enter a subcategory, if necessary. Select Add. The selected specialty, category, and subcategory details are added to the grid. Select a record for specialty, category, and subcategory from the Category and Subcategory Options grid. To add preconfigured result findings, type the description in Result Findings in the
NextGen® Adaptive Content Engine Help Enterprise 8
Add Obstetrics Diagnostics in Today's Assessment
Select the Prenatal Detail tab In the Diagnostics Studies panel, select Add. The OB Diagnostics template opens. In the Today's Assessments section, select the Add common assessment link. Note: You can also add an assessment using the OB Problems link. The Common assessment template opens. Select a diagnosis from the Common Assessment template. Select Save & Close. The selected diagnosis appears in the Today's Assessment grid in the OB Diagnostics template. Parent topic: Overview of Obstetrics Diagnostics
NextGen® Adaptive Content Engine Help Enterprise 8
Open Diagnostic Details
Before you begin Ensure that a diagnosis is available in the Today's Assessment grid. Select the Prenatal Detail tab In the Diagnostics Studies panel, select Add. The OB Diagnostics template opens. In the Today's Assessment grid, select a diagnosis. In the Orders section, select the Diagnostic study field and select a diagnostic study. The selected diagnostic study and the code appears. The Diagnostic Details link appears in the Result details section. Select the Diagnostic Details link. The Diagnostic Details template opens. Diagnostic Details Document Diagnostic Details You can add exam type, estimated gestational age (EGA), estimated fetal weight, and preconfigured diagnostic details for a diagnostic order. Parent topic: Overview of Obstetrics Diagnostics
NextGen® Adaptive Content Engine Help Enterprise 8
Add Obstetric Diagnostic Documents to Orders
Before you begin To attach a document, a diagnosis order should be available in the Orders section. Select the Prenatal Detail tab In the Diagnostics Studies panel, select Add. The OB Diagnostics template opens. In the Today's Assessment section, select the diagnosis order to add an attachment. In the Orders section, document the order details. Select the See scanned document check box, select the document or scanned image in the Scanned Document/Image window, and then select OK. The file is attached and the name of the attached file appears in the See scanned document field. Select Place Order. The attachment is added to the order. To replace the attached document, do the following: Select the Cl button. Select the See scanned document check box, and then select a document or image. Select Update. Select Save & Close. Parent topic: Overview of Obstetrics Diagnostics
NextGen® Adaptive Content Engine Help Enterprise 8
View Attachments in Obstetrics Diagnostics
Before you begin Only if the order has an attachment, you can view it. Select the Prenatal Detail tab Go to the Diagnostics Studies panel. Select the Launch Attachment check box. The * column indicates whether an attachment is available or not. Select the diagnostic order with attachment in the Diagnostic Studies grid. The attachment is available in a new tab. Parent topic: Overview of Obstetrics Diagnostics
NextGen® Adaptive Content Engine Help Enterprise 8
Update Diagnostic Categories
Open the Diagnostic Details Builder template. In the Category and Subcategory Options section, select a record from the grid. The Specialty, Category, and Subcategory for the selected record are available for editing. Make the required changes, and then select Update. The record is updated and available in the grid. In the Findings and Test Result Configuration section, select a record from the grid. The Result Findings, Test Results, and Units are available for editing. Make the required changes, and then select Update. The updated details are available in the grid. Select OK. Parent topic: Create and Configure Obstetrics Diagnostic Details
