Service Tab

Mirth® Connect by NextGen Healthcare User Guide

Info Tab

The Info tab shows the Mirth® Connect server and Java versions as well as the server ID and a link to the NextGen Healthcare website. Parent topic: The Mirth Connect Server Manager

Mirth® Connect by NextGen Healthcare User Guide

Server Tab

The Server tab enables you to enter details about your ports, server memory, log levels, and view log files. The following fields are available on the Server page. Function Description Web Start Port Accesses the launch page for the Mirth® Connect Administrator. Default: 8080 Administrator Port This port is used by the Mirth Connect Administrator to communicate with the Mirth® Connect Server. Default: 8443 Server Memory (mb) The server's maximum available memory (Java max heap size). By default this is 256 MB, but for large production instances you will typically want to increase this value. Main Log Level Database Log Level Channel Log Level These fields enables you to select the applicable log level from the drop-down menus. Available options include: ERROR WARN INFO DEBUG TRACE Depending on the log level, messages of the selected level or lower will pass into that level's log when the system logs a certain-level message. Refresh Select this button to update the most recent list of l

Mirth® Connect by NextGen Healthcare User Guide

Database Tab

The Database tab enables you to manage Mirth® Connect's internal database. The following fields are available on the Database tab. Function Description Type Select the database on which Mirth® Connect will store data. URL The Java Database Connectivity (JDBC) URL string associated with selected type. Username/Password The user's unique personal identifier/access code Warning: Mirth® Connect's default database, Apache Derby, is included only to help you set up quickly. Because it is not a production-level database, NextGen Healthcare strongly recommends that you not use Derby for production. Parent topic: The Mirth Connect Server Manager

Mirth® Connect by NextGen Healthcare User Guide

The Mirth® Connect Server Manager

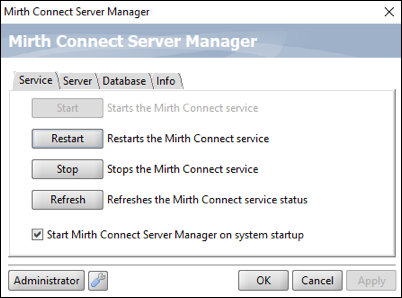

The Mirth® Connect Server Manager enables you to configure and access your Mirth® Connect Server. For Windows and Mac OS X version installations, the Mirth® Connect Server Manager application resides in the system tray (Windows) or in the Applications > Mirth Connect folder (Mac). Service Tab The Service tab provides an easy way to start, restart, stop, and refresh the service, rather than using the task scheduler or command line. Server Tab The Server tab enables you to enter details about your ports, server memory, log levels, and view log files. Database Tab The Database tab is where you can to manage Mirth® Connect's internal database. Info Tab The Info tab shows the Mirth® Connect server and Java versions as well as the server ID and a link to the NextGen Healthcare website. Parent topic: Getting Started with Mirth Connect

Mirth® Connect by NextGen Healthcare M3 User Guide

Launch Servers

M3 can also launch the Mirth® Connect Administrator. To launch a server: Click the checkbox next to the server you’d like to launch. Click Launch. The Mirth® Connect Web Administrator page opens launching the selected server. Parent topic: Manage Servers

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Settings link in the Mirth® Connect task pane on the top-left: side of the window. This section is separated into the following topics: Server Settings Tab Administrator Settings Tab Tags Settings Tab Configuration Map Settings Tab Database Tasks Settings Tab Resources Settings Tab Data Pruner Settings Tab Settings Tasks Parent topic: Settings View
