Managing Top Navigation Bar

NextGen® Orthopedic Suite Help 80.2.14.0

Managing Sub Navigation Bar

You can manage links in the sub navigation bar of medical record templates from the Sub Bar Navigation panel of the Specialty Nav Config system template. Additional links on the templates The asterisk (*) indicates the default settings for templates not configured. Sub Bar Navigation panel on the Specialty Nav Config template Add a New Sub Navigation Link to a Template You can add sub navigation links on the medical record templates of the NextGen® Orthopedic Suite. Update a Sub Navigation Link You can update a sub navigational link. Parent topic: Navigation Configuration

NextGen® Orthopedic Suite Help 80.2.14.0

Managing Database Picklist

You can manage any of the database picklists used for configuration of navigation links in the Database Picklist panel of the Specialty Nav Config system template. In the NextGen® Orthopedic Suite this pertains to forms, non-billable visit types, and fracture care types. Database Picklist panel on the Specialty Nav Config template Create a New Database Picklist You can create a new database picklist for configuration of navigation links on medical record templates. Add an Item to a Database Picklist You can add an item to a database picklist for configuration of navigation links on medical record templates. Remove a Database Picklist You can create a new database picklist for configuration of navigation links on medical record templates. Remove Items from a Database Picklist You can remove items from the database picklist used for configuration of navigation links on medical record templates. Parent topic: Navigation Configuration

NextGen® Orthopedic Suite Help 80.2.14.0

Navigation Configuration

You can customize the links and labels on the top navigation bar and sub navigation bar on the Navigation Configuration (Specialty Nav Config) system template. You can also configure the physical exam sidebar based on the rendering provider. This template has the following panels: Copy Navigation Top Bar Navigation Sub Bar Navigation Database Picklist Side Navigation Provider Custom Sidebar Specialty Nav Config template Note: Make sure to select IORTS in the Product field for any navigation configuration related to NextGen® Orthopedic Suite. Copy Navigation Settings You can copy navigation settings from one practice to another within the enterprise. Managing Top Navigation Bar Managing Sub Navigation Bar You can manage links in the sub navigation bar of medical record templates. Managing Database Picklist Managing Side Navigation Panes You can manage the side navigation pane used on the Physical Exam panel of the Billable Visit and Fracture Care templates. Customize Provider Specific S

NextGen® Orthopedic Suite Help 80.2.14.0

Add a Tab to Single Bar Navigation

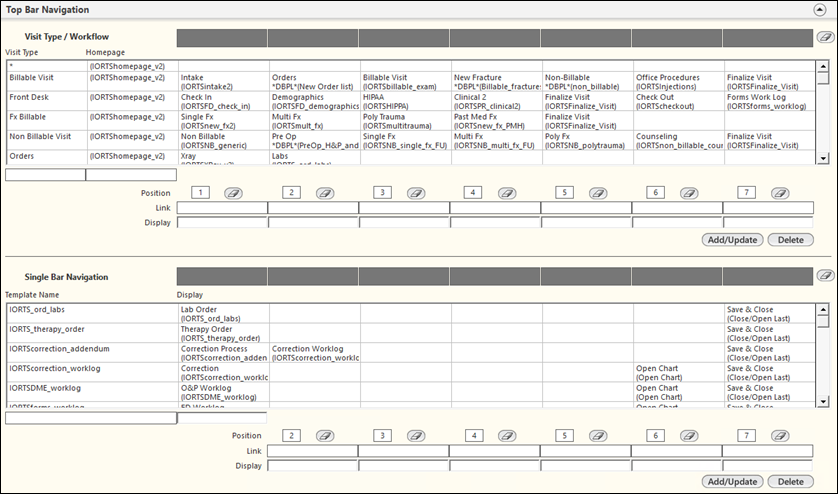

You can add a new template into the workflow of the Single Bar Navigation. On the Specialty Nav Config system template, expand the Top Bar Navigation panel. In the field below Template Name column of the Single Bar Navigation grid, select the desired template. In the field below the Display column, enter the desired display name. Add option in the Top Bar Navigation panel Click any Link field to add a linked template or picklist to the navigation. Do one of the following: Select DB Picklist to open a list of database picklists, select a database picklist to launch from the tab, and click OK. Select a template that you want to launch from the tab, and click OK. The new picklist or template into the Link field. Enter or edit the display name in the Display field below the Link field. Click Add/Update. The newly added template and linked tabs appear in the Single Bar Navigation grid. Parent topic: Managing Top Navigation Bar

NextGen® Orthopedic Suite Help 80.2.14.0

Change Workflow or Single Bar Navigation Links

You can change the default Visit Type/Workflow or Single Bar Template tab links, display names, and their order. The instructions to do so are the same for both sections. On the Specialty Nav Config system template, expand the Top Bar Navigation panel. Select the Visit Type or Template Name from the first column of the respective grid. Note: The asterisk visit type is the default setting. The gray tabs at the top displays the current configuration, and the links and display names fill the corresponding fields below the grid. Click in a Link field to add or change a picklist or template. This opens the Inf Nav Item List. This list has the item DB Picklist at the top, and a list of templates. Link field in the Top Bar Navigation panel Do one of the following: Select DB Picklist to open a list of database picklists, select a database picklist to launch from the tab, and click OK. Select a template that you want to launch from the tab and click OK. The new picklist or template name appear

NextGen® Orthopedic Suite Help 80.2.14.0

Change Tab Order in the Top Navigation Bar

You can change the order in which the tabs appear in the gray navigation bar. The numbers above the fields below the grid indicate the order, left to right. On the Specialty Nav Config system template, expand the Top Bar Navigation panel. Do one of the following: From the first column of the Visit Type / Workflow grid, select the Visit Type. From the first column of the Single Bar Navigation grid, select the Template Name. Click on the Position fields above the Link fields to change the order numbers. Click Add/Update. Parent topic: Managing Top Navigation Bar
