Set up Region Highlight Trigger

The Region Highlight action selects a highlighted region of an active image.
  1. Follow the applicable steps in General Trigger Setup.
  2. Select the Region Highlight action.

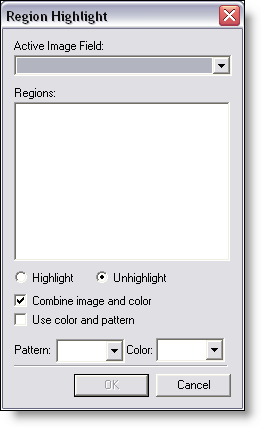

    The Region Highlight window opens.

  3. Select an Active Image Field from the list.
  4. Select a Region.
  5. To trigger the subsequent action in the selected active image region, select either the Highlight or Unhighlight option.
  6. If necessary, select the Combine image and color and/or Use color and pattern check box(es), and then select the Pattern and Color from the respective lists.
  7. To save the information and close the window, select OK.
  8. If necessary, set up a specific condition for the Region Highlight action to be triggered.
  9. Select OK and save your template.
