Set up Region Highlight Trigger

NextGen® Enterprise EHR Template Editor Help 8

Set up Region Highlight Trigger

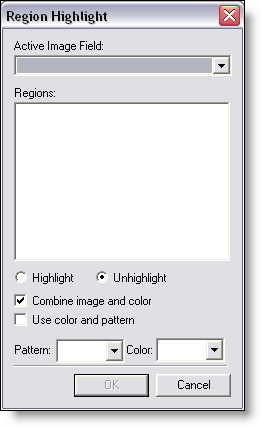

The Region Highlight action selects a highlighted region of an active image. Follow the applicable steps in General Trigger Setup. Select the Region Highlight action. The Region Highlight window opens. Select an Active Image Field from the list. Select a Region. To trigger the subsequent action in the selected active image region, select either the Highlight or Unhighlight option. If necessary, select the Combine image and color and/or Use color and pattern check box(es), and then select the Pattern and Color from the respective lists. To save the information and close the window, select OK. If necessary, set up a specific condition for the Region Highlight action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Launch Image Trigger

The Launch Image action allows you to save the current template and then launch a preselected image. Follow the applicable steps in General Trigger Setup. Select the Launch Image action. The Launch Image window opens. Select an image to be launched from the selected field. To save the information and close the window, select OK. If necessary, set up a specific condition for the Launch Image action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger See also General Trigger Setup

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Hide Item Trigger

You can hide one or more selected fields on the template at run time using hide item trigger. Follow the steps in General Trigger Setup. Select the Hide Item action. The Hide Template Field window opens. From Available Template Fields, select each field you want to hide, and then select Add. The selected fields appear in the Fields to Hide pane. You can select the multiple fields by selecting the Ctrl button. You can remove the selected fields by selecting the fields from the Fields to Hide pane and selecting the Remove button. From Filter, select the required filters. The Available Template Fields pane now displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the label. To copy the script to clipboard, you can select Copy to C

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Enable Control Trigger

The Enable Control action turns on the selected fields on a template at run time. You cannot turn on the following types of fields: web browser, patient image, graph, lab order, sub template, and GET component. Note: If you turn on a collapsible panel, all fields on it are also turned on. You can turn off specific fields on the panel separately. All other fields on the panel remain turned on. Follow the steps in General Trigger Setup. Select the Enable Control action. The Enable Template Field window opens. From the Available Template Fields pane, select each field you want to enable, and then select Add. The selected field appears in the Fields to Enable pane and the OK button is turned on. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Enable pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the s

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Show Item Trigger

The Show Item action displays the selected, previously hidden field(s) on the template at run time. Follow the steps in General Trigger Setup. Select the Show Item action. The Show Template Field window opens. From the Available Template Fields pane, select each field you want to show, and then select Add. The selected fields appear in the Fields to Show pane. You can select the multiple fields by selecting the Ctrl button. Note: You can remove the selected fields by selecting the fields from Fields to Show pane and selecting the Remove button. From the Filter list, select the required filters. The Available Template Fields pane now only displays the selected filter. Note: If you have selected multiple fields to set up this trigger, the fields are automatically selected, if applicable to the action. The field that triggers the action is not included. You can remove any of the selected fields and add others. Select Script It. The Script Clipboard window opens with the script of the labe

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set up Toggle Panel Trigger

The Toggle Panel action enables users to expand and collapse one or more panels on a template. Note: Another way to toggle collapsible panels is through a toggle button on the panel header. Follow the applicable steps in General Trigger Setup. Select the Toggle Panel action.The Toggle Panel window opens. This window lists each collapsible panel that has been added to the template. Toggle Panel window From the Act on column list, select the applicable column. From the Action list, select the applicable action: Collapse. Collapses all or selected panels. Cycle Down. Cycles all panels as follows: Moves and collapses the top panel down one in position. Expands and moves the last panel to the top. Cycle Up. Cycles all panels as follows: Expands and moves the second panel to the top. Moves and collapses the top panel to the bottom position. Defaults. Restores the default trigger settings to all panels. Expand. Expands all or selected panels. Toggle. Switches all or selected panels to the opp
