Show Watch Window

NextGen® Enterprise EHR Help

Show Watch Window

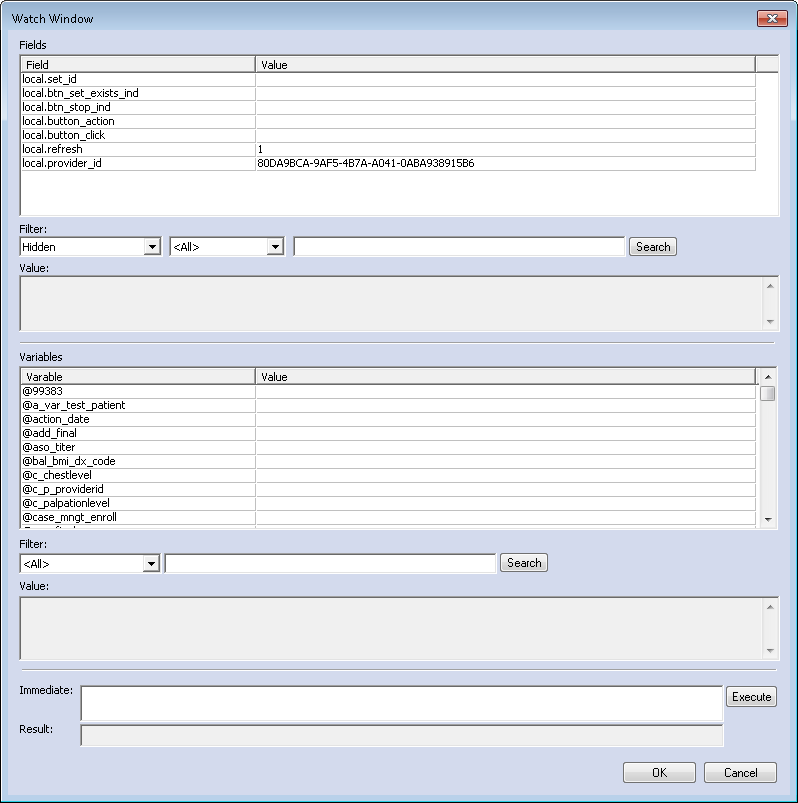

The Watch window helps template developers to debug their templates. You can view the value of fields and variables located on the template that may or may not be visible on the template. Select a patient. Open the applicable template. Right-click on the template, and then select Show Watch Window. Note: This command is not available on the right-click menu for a pop-up template. The Watch Window opens. In the Fields filter, select the required fields, and then select Search. The fields appear in the Fields grid. Note: The filters are available for the following fields: Active Text Check box Edit Radio In the Variables filter, select the required fields, and then select Search. The fields appear in the Fields grid. In the Immediate field, enter your criteria, and then select Execute. The result appears in the Result field. Select OK. Parent topic: Using Templates

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Update a Variable

You can update the value of the variables added for the templates. Open the Setup Variables window. Select System, Patient, Template or Encounter. A list containing the variable, opens. Select the variable from the list you want to update. Select Update to save the changes. The updated variables appear in the selected template's list. Parent topic: Setting Up System, Patient, Template, and Encounter Variables

NextGen® Enterprise EHR Template Editor Help 8

Update a Variable

You can update the value of the variables added for the templates. Open the Setup Variables window. Select System, Patient, Template or Encounter. A list containing the variable, opens. Select the variable from the list you want to update. Select Update to save the changes. The updated variables appear in the selected template's list. Parent topic: Setting Up System, Patient, Template, and Encounter Variables

NextGen® Enterprise EHR Template Editor Help 8

Set Up Variables

You can add, update, or remove the variables. You can use the Script It button in the Setup Variables window to create the code snippet for the selected variable. In the Trigger Scripts, you can copy the code snippet to the clipboard and paste into a trigger script. To open the Setup Variables window, do one of the following: On the Main toolbar, select Variables. In the Trigger Info or Assign Field Value window, right-click a variable in the Variables list, and then select Setup Variables. Right-click anywhere on the body of a template and then select Variables from the shortcut menu. The Setup Variable window opens, with four color-coded tabs that list existing System (pink), Patient (green), Template (blue), and Encounter (purple) variables. From the Scope list, select System, Patient, Template, or Encounter. Note: To create a Template variable, you must open an existing template before opening the Setup Variables window. Otherwise, the Template option does not appear in Scope list.

NextGen® Enterprise EHR Template Editor Help, 8.3.1

Set Up Variables

You can add, update, or remove the variables. You can use the Script It button in the Setup Variables window to create the code snippet for the selected variable. In the Trigger Scripts, you can copy the code snippet to the clipboard and paste into a trigger script. To open the Setup Variables window, do one of the following: On the Main toolbar, select Variables. In the Trigger Info or Assign Field Value window, right-click a variable in the Variables list, and then select Setup Variables. Right-click anywhere on the body of a template and then select Variables from the shortcut menu. The Setup Variable window opens, with four color-coded tabs that list existing System (pink), Patient (green), Template (blue), and Encounter (purple) variables. From the Scope list, select System, Patient, Template, or Encounter. Note: To create a Template variable, you must open an existing template before opening the Setup Variables window. Otherwise, the Template option does not appear in Scope list.

NextGen® Enterprise EHR Template Editor Help 8

Search Trigger Values

You can search for specified values in conditions and parameters for selected types of triggers in the currently open template. The search values can include fields, variables, functions, characters, or other values. You can then select a trigger from the search results for editing. Do one of the following: To automatically populate the search value with a specific template field, either: Right-click the field, and then select Find in Triggers from the menu. Select the field, and then select Find in triggers on the Main toolbar. To manually enter the search value, select Find in Triggers on the Triggers window. The Find In Triggers window opens. If applicable, the search value box displays the selected field. The window contains check boxes for commonly used triggers and for conditions. The Conditions and Assign Field Value check boxes are selected by default. If the search value is blank or you want to change it, enter the value in the input box. To select the applicable trigger check
