The findings grid displays the region or finding level diagnosis codes when you annotate a region in NextGen® Enterprise EHR. Only one diagnosis code is automatically selected for a single finding.
Open NextGen® Enterprise EHR.
Select a patient.
Select an existing encounter or create an encounter.
Open the template that contains the Graphical Exam Tool (GET) component.
The GET component window opens.

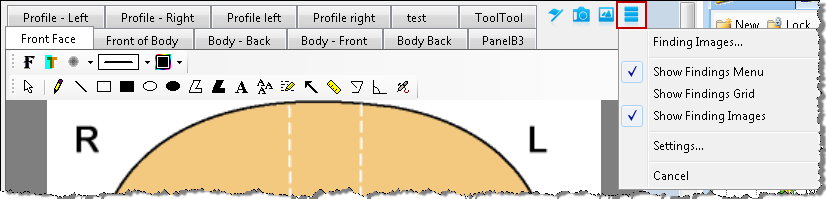

Select the Options and Settings Popup Menu icon and then select Show Findings Grid.
The findings grid pane appears.
In the FINDINGS menu pane, select the finding, and annotate a region.

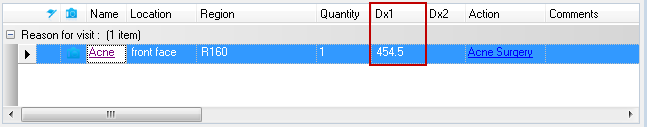

When a region is selected, the Dx Code column is updated in the Findings Grid.
Note: The GET validates the appropriate ICD-9 or ICD-10 code, based on encounter date. If there is a default diagnosis code assigned for the finding level, it is overwritten by the region mapped diagnosis code and the diagnosis code is automatically updated to the new regions code.
