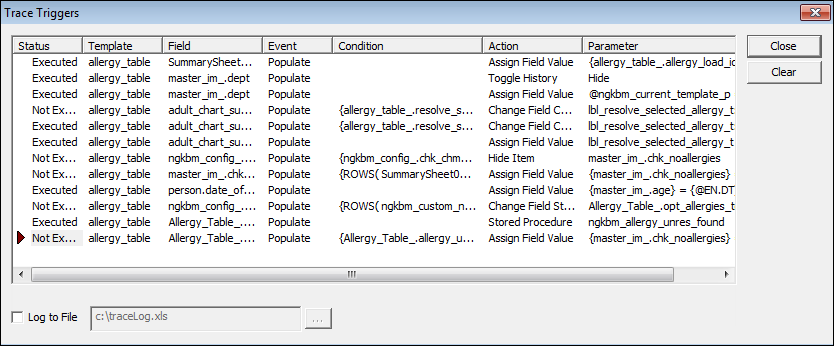

View Trace Triggers

NextGen® Enterprise EHR Template Editor Help 8

Trigger Functions

The Trigger Functions icon has been added in the main toolbar which enables you to create and maintain trigger scripts. The Trigger Script displays a list of NextGen® Enterprise EHR and user-defined trigger scripts. The NextGen® Enterprise EHR trigger scripts can only be edited by NextGen® Enterprise EHR users with NextGen® Enterprise EHR admin access. User-defined scripts can be edited by any user. Note: To manage NextGen® Enterprise EHR trigger scripts, Template Editor must be launched in NextGen® Enterprise EHR Admin mode. If you do not have NextGen® Enterprise EHR admin access, you cannot create NextGen® Enterprise EHR trigger scripts or edit a script. The Template Runtime provides the ability to execute a structured code block which performs all the operations of existing trigger actions. Set Operation Rights for Scripts Create a Trigger Script Update a Trigger Script Delete a Trigger Script Manage Trigger Scripts Code Snippets

NextGen® Enterprise EHR Help

Trace SQL Actions

In NextGen® Enterprise EHR, open Help menu. Select Trace Settings. The Trace Settings window opens. Select Trace Enabled. Select the check boxes for the instances to trace. Select OK. The NextGen Trace window opens. Select Start. The selected items are automatically traced as you perform actions in NextGen® Enterprise EHR. After you perform actions, you can view the traces on the NextGen Trace window. If you have multiple results, you can filter the results. Filter Trace Results Parent topic: Help Menu Related tasks Filter Trace Results

NextGen® Enterprise EHR Template Editor Help 8

Set up Trigger Script Trigger

The Trigger Scripts enables you to create, maintain, and invoke reusable structured code blocks. These structure code blocks can perform all the operations of existing trigger actions. The Template Runtime provides the ability to debug trigger scripts and set break points in trigger scripts, code execution, and examine values. A debug attribute can be set for any Trigger Script trigger. When a trigger with the debug attribute is executed in runtime, the Trigger Script Debugger window displays and execution is paused at the related trigger scripts and then goes through the code execution, examining values, and evaluating code segments. Follow the applicable steps in General Trigger Setup. Select the Trigger Script action. The Trigger Script window opens. In the Function Script Name list, select the required structured code block or script name. The Comments box displays the related comments and the Parameters grid displays the respective parameters. Note: The Function Script Name list d

NextGen® Enterprise EHR Template Editor Help 8

Set up GET Template Notification Data Trigger

The Get Template Notification Data trigger can be used to store and/or display data sent from the Graphical Exam Tool (GET) when a user performs certain actions in NextGen® Enterprise EHR. For example, the trigger can be executed when a user selects an annotation on an active image, selects finding or action hyperlinks in the Findings Grid, or updates the patient's reason for visit. Note: This trigger is available only from a Template Notify event on a Medical Records template. Before you create this trigger, set up a text data entry field or variable on your template to hold the notification parameter. If you set up Template Popup options for a finding, procedure, or lab order in a GET profile, use this trigger together with a Template Pop-Up trigger. The Get Template Notification Data trigger pulls the name of the Popup template into the notification parameter field, and the Template Pop-Up trigger launches that template. Follow the applicable steps in General Trigger Setup. In the T

NextGen® Adaptive Content Engine Help Enterprise 8

Document Information with Template Screening Tools

You can document information in the screening tools that open as templates using the Screening Tools template. Open NextGen® Enterprise EHR. Select a patient encounter, and open a template. For example, Intake. Select Navigation, and then select Screening Tools. The Screening Tools template opens. To view the screening tools, do one of the following: To view the screening tools configured for the selected specialty, select Current Specialty. To view all the screening tools, select All. Note: When you do not select a specialty for an encounter, the All option is selected by default and all the screening tools appear on the Screening Tools template. In the Screening Tools Available panel, select a screening tool with the T indicator. The associated screening tool template opens. Document details provided by the patient. The screening score is calculated, and the documented details appear in the Screening Tools Performed grid. Parent topic: Viewing Screening Tools

NextGen® Enterprise EHR Template Editor Help 8

Set up View Category Trigger

The View Category action automatically enables View Category mode in NextGen® Enterprise EHR. Follow the applicable steps in General Trigger Setup. Select the View Category action. The Select Category window opens. Select an existing category. To save the information and close the window, select OK. If necessary, set up a specific condition for the View Category action to be triggered. Select OK and save your template. Parent topic: Setting up Specific Trigger
