Configure Equipment Field Map for Hillrom™ Welch Allyn® CardioPerfect® Resting ECG

You can map a Hillrom™ Welch Allyn® Resting ECG device to a template in NextGen® Clinical Templates 7.6.1 and above.

  1. Access File Maintenance.
  2. Select Master Files > System > Equipment Field Map.

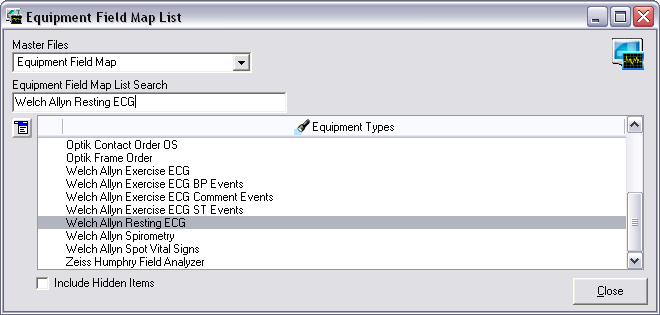

    The Equipment Field Map List window appears.

  3. From the Equipment Types list, double-click Welch Allyn Resting ECG.

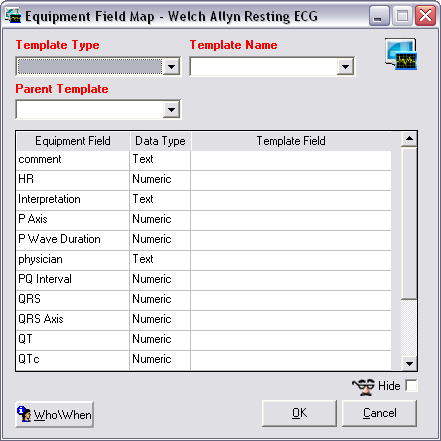

    The Equipment Field Map - Welch Allyn Resting ECG window opens.

  4. Assign the following values:
    • Template Type: Extended Medical Record Popup
    • Template Name: card_restingecgdata_
    • Parent Template: CARD_restingECG
    Equipment FieldData TypeTemplate Field
    commentTextcomments
    HRNumerichr
    InterpretationTextinterpretation
    P AxisNumericp_axis
    P Wave DurationNumericp_wave_duration
    physicianTextphysician
    PQ IntervalNumericpq_interval
    QRSNumericqrs_duration
    QRS AxisNumericqrs_axis
    QTNumericqt_duration
    QTcNumericqtc_duration
    QTdNumericqtd_duration
    Recorded Date/TimeTextrecorded_date_time
    T AxisNumerict_axis
    technicianTexttechnician
  5. Select OK to save any changes and exit the Equipment Field Map - Welch Allyn Resting ECG window.
  6. Select Close to exit the Equipment Field Map List window.
