Section Parameter/Grid Options for Dynamic HPI
The Parameter field is used to configure the number and type of grids for each Section. The options are as follows:
Grid Type | Description | Illustration |
---|---|---|
Single | Displays the findings for a section in a single selection set. | |

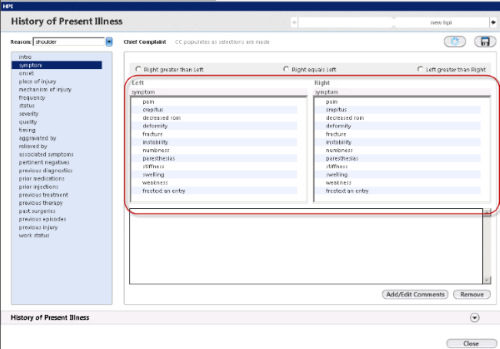

Left/Right | Displays the findings in a two grid set that enables the user to select the same content based on right and left laterality. The symptoms for the left side of the patient’s body are arranged on the left side of the window and symptoms on the right side of the patient's body are arranged on the right side of the window. | |

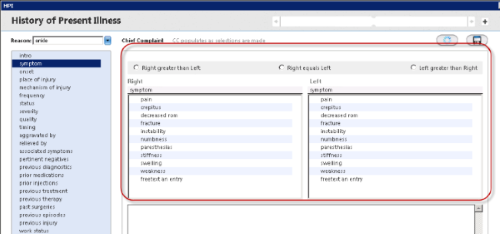

Right/Left | Displays the findings in a two grid set that enables you select the same content based on right and left laterality. The symptoms for the left side of the patient’s body are arranged on the right side of the window and symptoms on the right side of the patient's body are arranged on the left side of the of the window. | |
Group 1/Group 2 | Displays Group 1 findings in the left grid and Group 2 findings in the right grid. In this option, values from Group 1 and 2 can be concatenated into one sentence structure with two separate meanings. If the user selects neck and shoulder for Group 1 and lower back for Group 2, the sentence structure is: " the pain radiates from the neck and shoulder, and then to the lower back. Group sentences are selected as two separate sentences that combine into one. |
