Delete an EM Mapping
On the
E&M Bullets and Field Mapping
system template, navigate to the
EM FIELD MAPS
or
(Page 3 Fields)
section.
Select the applicable mapping row in the
Edit Fields
data grid.
Note:
You have to select the
EM Type
and the
Table
fields whose mapping is to be deleted, if it is not already selected.

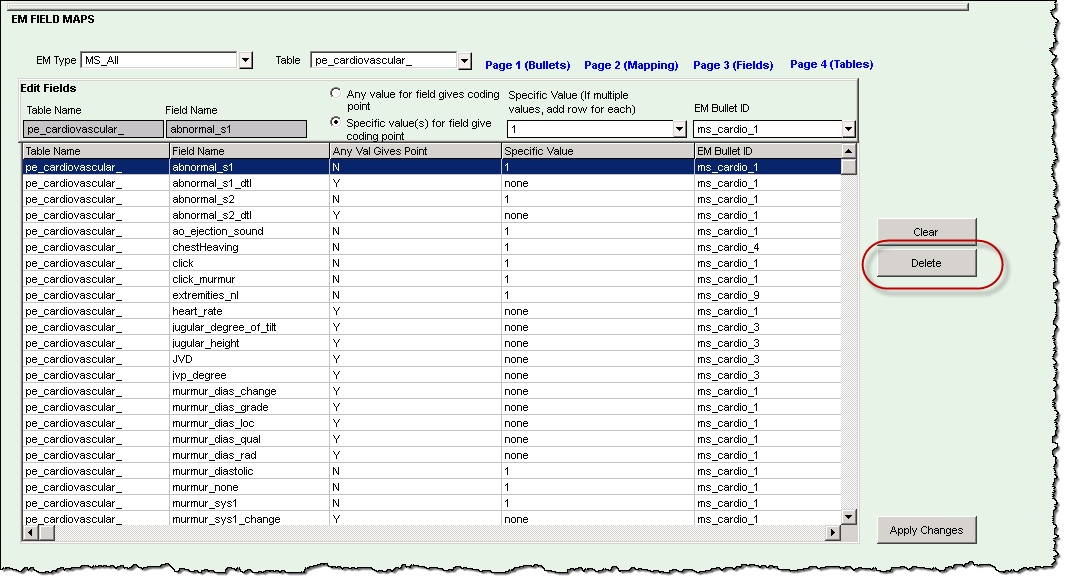

Click the
Delete
button.
The mapping no longer appears in the data grid.
When you have completed the changes, click the
Apply Changes
button to activate the changes.
