To enable configuration for snomed visit type, you must enable the Configure button.You can enable the Configure button in the Step 2 Add/Edit List Items panel in the Custom DBPicklist Setup template.


  - Open NextGen® Enterprise EHR.

  - Open the Custom DB Picklists template.

  - In the Custom DB Picklists top grid, select SNOMED_Visit_Type.

    The selected DB picklist appears in the DBPicklist Name field.


  - Select Update.

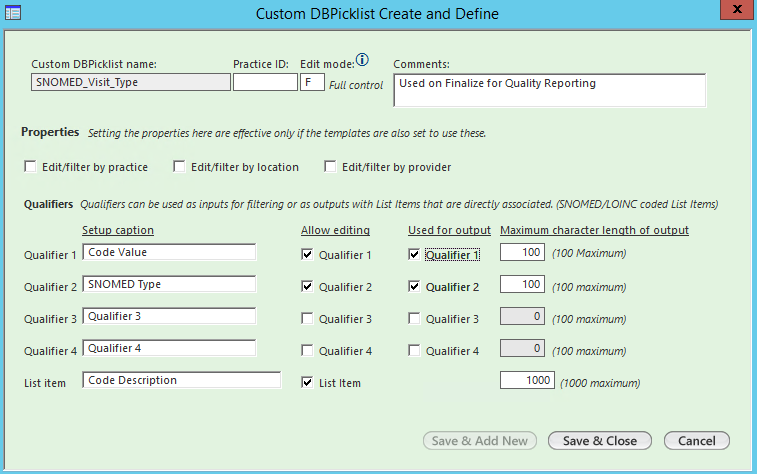

    The Custom DBPicklist Create and Define template opens.


  - In the Qualifiers section, in the Used for output column, select Qualifier 1 and Qualifier 2 checkboxes.

  - In the Maximum character length of output column, enter maximum character limit for Qualifier 1, Qualifier 2, and List item in the corresponding fields.

    Note: The maximum character limit for all three fields should be more than zero but no more than 100.




  - Select Save & Close.

    The Configure button has been enabled in the Step 2 Add/Edit List Items panel.
