EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

EM Bullet ID - Field Mapping

The EM BULLET ID -FIELD MAPPING or Page 2 (Mapping) maps the EM Coding Bullet ID to a specific field on template. If any of the mapped fields are documented during an encounter, the EM Bullet ID is tallied with other bullets. A total tally of all documented bullets is shown on the EM History template. If new templates are added, or if existing templates are customized, and they contain HPI, or physical exam fields, the fields need to be mapped using Page 2 (Mapping) section of the E&M Bullets and Field Mapping template to be included in the EM calculation. For HPI’s, it is recommended that you use an existing HPI template as your starting point to minimize the need for EM mappings. For the history fields, it is recommended that you share the radio buttons and doc gen hidden fields from Master_IM onto your new template. By doing so, no additional mappings are needed. Mapping Data Grid Add a New Bullet ID - Field Mapping Remove a Bullet ID - Field Mapping Parent topic: Evaluation and Man

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

EM Table List

The EM TABLE LISTS or Page 4 (Tables) displays a listing of all templates that are in the list of tables on Page 3 (Fields). This section allows you to add or delete templates from the EM TABLE LISTS. Add a Template to the EM Table List Delete a Template from the EM Table List Parent topic: Evaluation and Management Bullets and Field Mapping System Template

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

EM Field Maps Data Grid

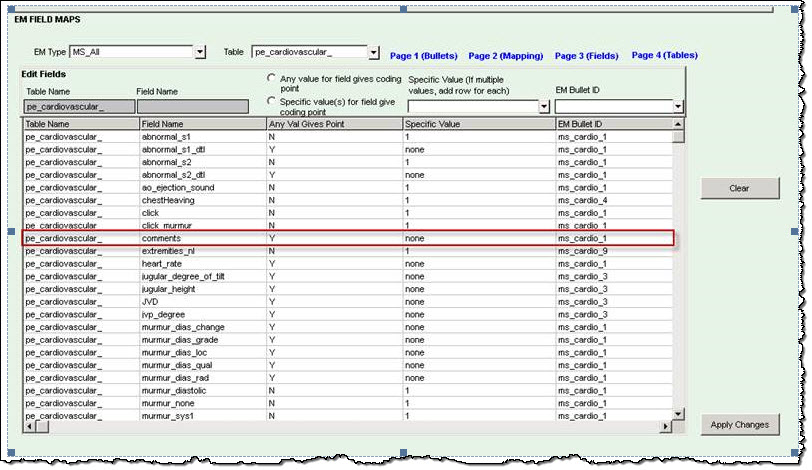

The description of fields listed in the EM Field Maps data grid is: Field Description Table Name The table or template name selected in the Table field just above the data grid. Field Name The native field on the selected table or template. Any Val Gives Point The assigned field value (for example 0 or 1, y or no, etc.) Specific Value The assigned value from a pick list selection. Bullet ID The mapped bullet identifier. When selecting a mapping on the EM BULLET ID – FIELD MAPPING data grid, the default mapping for the field type is added to the Edit Fields data grid in the EM FIELD MAPS section of the template. In this example, the MS_All option in the EM Type field and the pe_cardiovascular option in the Table field are selected. Note: : The fields for a table that do not have a mapping do not appear in the EM FIELD MAPS data grid. Parent topic: EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Modify an EM Mapping

On the E&M Bullets and Field Mapping system template, access the EM FIELD MAPS section. Select the applicable mapping row from the data grid. Click the EM Bullet ID field or the Specific Value field. Select the new value from the picklist and click the Update button. The selected mapping appears in the data grid, with the modified value. When you have completed the changes, click the Apply Changes button. Parent topic: EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Map a Specific Value of a Field

On the E&M Bullets and Field Mapping system template, map the field with the first appropriate bullet ID on EM BULLET ID – FIELD MAPPING section, in the Page 2 (Mapping) section of the template. Go to the EM Field Maps section in the Page 3 (Fields) section, and in the data grid, select the row added in the previous step. Click the EM Bullet ID field, above the data grid to launch the picklist. From the picklist, select the applicable bullet ID and click the Add button. The new mapping is listed in the data grid. By default the Specific value(s) for field give coding point option is selected. In this example, the MS_All option is selected in the EM Type field, the pe_cardiovascular option is selected in the Table field, and the abnormal_s1_dtl option is selected in the Field Name field. The abnormal_s1_dtl field is already listed in the data grid, shown as being mapped to the EM Bullet ID option ms_cardio_1. In this example, for this mapping, an EM coding point is needed to be given wh

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Add Multiple Mappings to a Field

On the E&M Bullets and Field Mapping system template, map the field with the first appropriate bullet ID on the EM BULLET ID – FIELD MAPPING section, in the Page 2 (Mapping) section of the template. Navigate to the EM Field Maps section in the Page 3 (Fields) section, and select the applicable mapping row in the data grid. Click the EM Bullet ID field, above the data grid to launch the picklist. From the picklist, highlight the applicable bullet ID and click the Add button. By default, the Any value for field gives coding point option is selected, and none is selected in the Specific Value field. Repeat steps 1 to 4 to add more bullet ID mappings. In this example, the MS_All option is selected in the EM Type field, the pe_cardiovascular option is selected in the Table field, and the abnormal_s1_dtl option is selected in the Field Name field. The abnormal_s1_dtl field is already listed in the data grid, shown as being mapped to the EM Bullet ID option ms_cardio_1. In this example, a sec
