Add Multiple Mappings to a Field

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Map a Specific Value of a Field

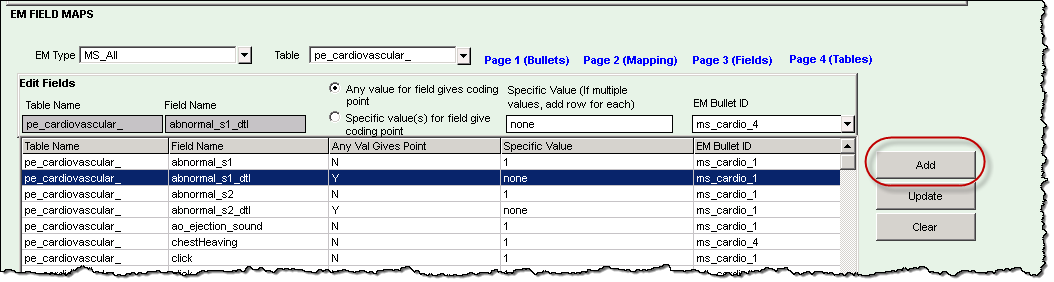

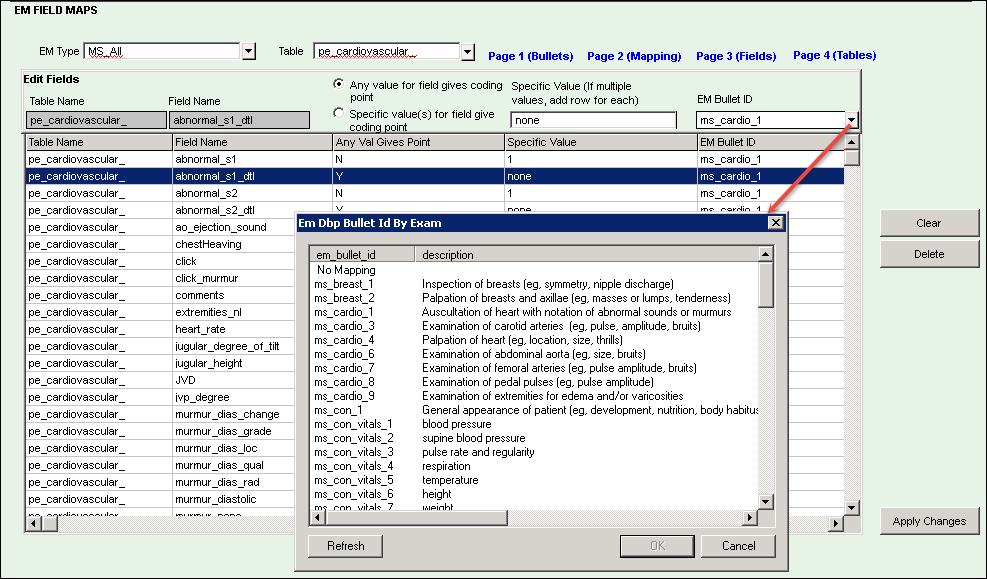

On the E&M Bullets and Field Mapping system template, map the field with the first appropriate bullet ID on EM BULLET ID – FIELD MAPPING section, in the Page 2 (Mapping) section of the template. Go to the EM Field Maps section in the Page 3 (Fields) section, and in the data grid, select the row added in the previous step. Click the EM Bullet ID field, above the data grid to launch the picklist. From the picklist, select the applicable bullet ID and click the Add button. The new mapping is listed in the data grid. By default the Specific value(s) for field give coding point option is selected. In this example, the MS_All option is selected in the EM Type field, the pe_cardiovascular option is selected in the Table field, and the abnormal_s1_dtl option is selected in the Field Name field. The abnormal_s1_dtl field is already listed in the data grid, shown as being mapped to the EM Bullet ID option ms_cardio_1. In this example, for this mapping, an EM coding point is needed to be given wh

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

EM Field Maps Data Grid

The description of fields listed in the EM Field Maps data grid is: Field Description Table Name The table or template name selected in the Table field just above the data grid. Field Name The native field on the selected table or template. Any Val Gives Point The assigned field value (for example 0 or 1, y or no, etc.) Specific Value The assigned value from a pick list selection. Bullet ID The mapped bullet identifier. When selecting a mapping on the EM BULLET ID – FIELD MAPPING data grid, the default mapping for the field type is added to the Edit Fields data grid in the EM FIELD MAPS section of the template. In this example, the MS_All option in the EM Type field and the pe_cardiovascular option in the Table field are selected. Note: : The fields for a table that do not have a mapping do not appear in the EM FIELD MAPS data grid. Parent topic: EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Modify an EM Mapping

On the E&M Bullets and Field Mapping system template, access the EM FIELD MAPS section. Select the applicable mapping row from the data grid. Click the EM Bullet ID field or the Specific Value field. Select the new value from the picklist and click the Update button. The selected mapping appears in the data grid, with the modified value. When you have completed the changes, click the Apply Changes button. Parent topic: EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Delete an EM Mapping

On the E&M Bullets and Field Mapping system template, navigate to the EM FIELD MAPS or (Page 3 Fields) section. Select the applicable mapping row in the Edit Fields data grid. Note: You have to select the EM Type and the Table fields whose mapping is to be deleted, if it is not already selected. Click the Delete button. The mapping no longer appears in the data grid. When you have completed the changes, click the Apply Changes button to activate the changes. Parent topic: EM Field Maps Section

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

EM Field Maps Section

The EM FIELD MAPS or Page 3 (Fields) displays a list of all mappings for all fields in a table. This section enables you to: Add multiple bullet IDs to one field. For example, select the Globally Normal check box where multiple elements are selected by selecting that field. Set a specific value - Some fields must only get a point if the field has a specific value in that field. An example of this is a picklist that has multiple elements. Each item in the picklist could be set up as a specific value to be mapped to a unique bullet ID. EM Field Maps Data Grid Add Multiple Mappings to a Field Map a Specific Value of a Field Modify an EM Mapping Delete an EM Mapping Parent topic: Evaluation and Management Bullets and Field Mapping System Template

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Add a New Bullet ID - Field Mapping

On the NE&M Bullets and Field Mapping system template, access the EM BULLET ID - FIELD MAPPING section. If an EM Type is not currently selected, select an option from the drop-down arrow. Select the table that contains the exam fields to be mapped from the drop-down in the Table field. The data grid displays a list of fields found in the selected table. Note: Once a table is selected, only the fields that are native to that table are listed in the Mapping data grid. Non-clinical fields may also be listed in the Mapping data grid, so not all fields need to be mapped for any particular template. In this example, the EM Type has already been selected. If the desired table is not listed in the picklist, click the Page 4 (Tables) link to add the table to the EM Table List. Click the Table field to select an option from the picklist. In this example, the table pe_cardiovascular is selected. Select a field to map by clicking on a row in the Mapping grid. The Mapping grid only displays the fie
