When you add a new finding, the default image tool used to mark the finding on the GET image is Marker and the default color is red. You can change either of these settings.
- On the GET template, select the
icon.
The Options and Setting menu opens.
- From the menu, select Settings.
The Graphical Exam Tool -Settings window opens.
- Click the Findings tab.
- Select a finding from the Findings list.
The properties for the selected finding appear in the Properties pane.
- Click Drawing Tool and then click the ellipsis
button.

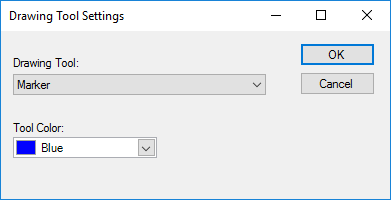

The
Drawing Tool Settings window opens showing the default or current drawing tool settings.
- To use a different tool than the default, click the Drawing Tool list and select a drawing tool.
Note: The best practice is to use the Marker tool.
- To use a different marker tool color than the default, click the Tool Color list and select the color.
- Click OK.
- Click Save and click Close.
